2859-181205-ung-ae-lan7431-ksz9893
2859-181205-ung-ae-lan7431-ksz9893

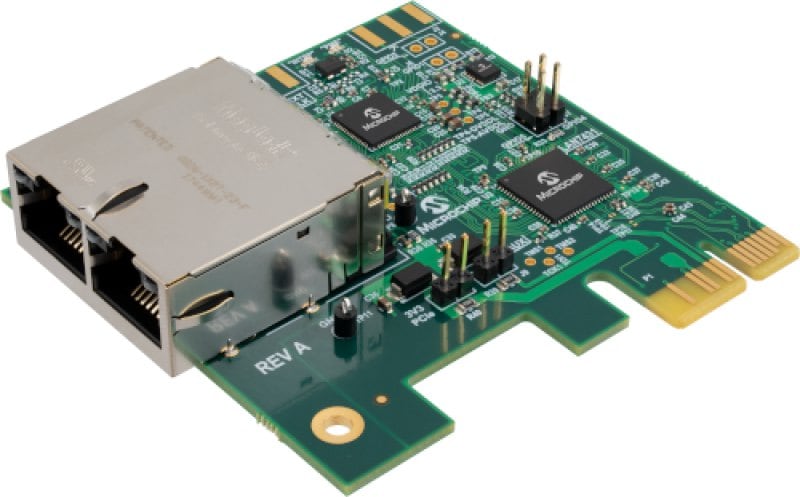

Part Number: AE-LAN7431-KSZ9893

PCIE TO DUAL PORT 10/100/1000 ETHERNET APPLICATION EXAMPLE

**For development reference only, not a product for sale**

  • Single-chip, PCIe 3.1 @ 2.5GT/s to 10/100/1000 Ethernet controller
  • PCIe Low Power Sub States LPSS L1.1 (snooze) & L1.2 (off)
  • IEEE 1588-2008 Programmable Time Compare output (Eg: 1PPS) via SMA connector
  • IEEE 1588-2008 Capture input via SMA connector
  • JTAG via integrated 1149.1 compliant TAP
  • Accessible GPIO

Overview

AE-LAN7431-KSZ9893 is an Application Example showcasing PCIe RGMII networking and Ethernet switch functions

Package Contents

** Application Example **

** Not a board for sale **

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
AE-LAN7431-KSZ9893 Board Gerber Files Download 478ff9ed-b88c-4b97-9060-c3ed91ce2990
AE-LAN7431-KSZ9893 Schematics, PDF Download f32c632f-e1f7-48cd-90d5-5ac791a070a3
AE-LAN7431-KSZ9893 Board BOM Download e129105f-883d-4726-b723-264b6d4be79e
AE-LAN7431-KSZ9893 DSN Files Download 96149b81-416c-45f7-896f-a5e3c6762ee3
