Overview

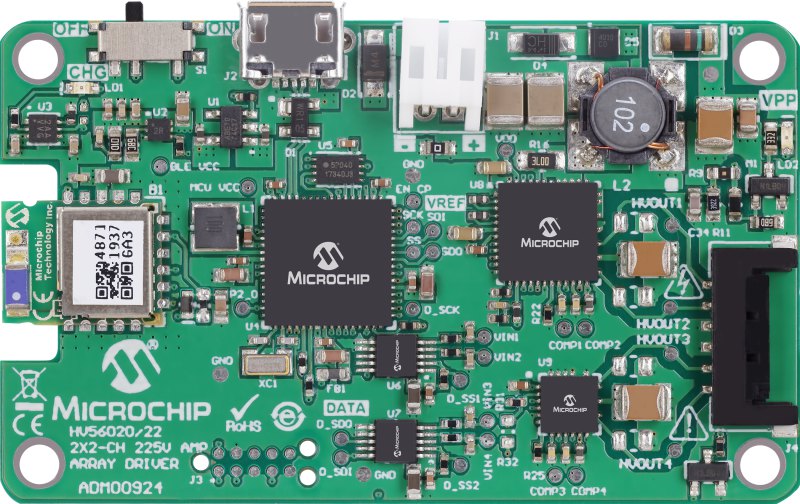

The ADM00924 is a development tool that allows customers to evaluate the function and capabilities of the HV56020 and HV56022. The Evalution Board presents a 4-channel solution for Haptics applications. The PC GUI will allow the user to feed data via USB connection in two modes of operation: live or stored data file (.csv, .wav file type supported). It also provides the usage of Bluetooth communication to transmit stored data from MCU to actuators via an android phone application.
The ADM00924 Development Tool provides:
4 High Voltage Outputs (Up to 225V)
Single Input Voltage Supply (VIN: 2.7V to 5.5V)
PC GUI Application
•Live Data Transmission (up to 22KS/s)
•Data File Transmission (.csv and .wav format supported)
•Data Sample Rate Adjustment for Data Files(8KS/s up to 22KS/s)
•Output Channel Mapping (data steering; direct data to different output channel)
Android Phone GUI Application
•Bluetooth Low Energy
•Transmits stored data in MCU to actuators
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| ADM00924 - Windows GUI Setup | Software Tools | Download | ||
| ADM00924 - Phone Android Aplication | Software Libraries and Firmware | Download | ||
| ADM00924_User Guide | User Guide | Download | ||
| ADM00924 BOM | Board Design Files | Download | ||
| ADM00924 Schematic | Board Design Files | Download | ||
| ADM00924 Gerbers | Board Design Files | Download | ||
| HV56020/22 - Evaluation Board User’s Guide | User Guide | Download |
