Overview

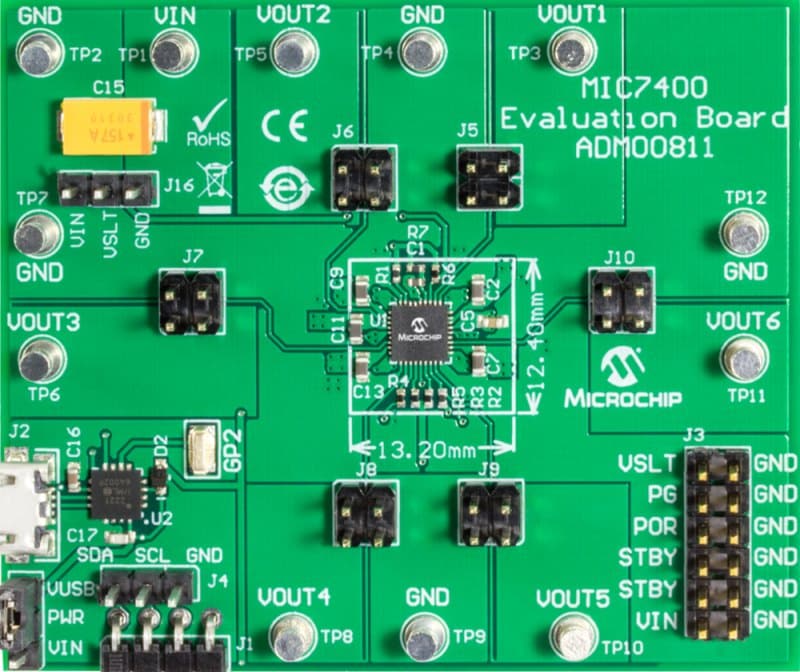

MIC7400 Evaluation Board was developed to evaluate the capabilities of the MIC7400 Power Management Integrated Circuit (PMIC). The device features 5 DC-DC buck converter capable of delivering 3A each and a boost converter with a 200mA current capability and I2C programmable output voltages.
The MIC7400 Evaluation Board also features the MCP2221 USB to I2C bridge that enables direct communication and programming functionality by connecting the MIC7400 to the Graphic User's Interface (GUI).
• Input voltage: 2.4V to 5.5V
• Five independent synchronous bucks up to 3A
• One independent non-synchronous boost 200mA
• 200μA quiescent current (all regulators on)
• 93% peak buck efficiency, 85% typical efficiency at 1mA
• Dual power mode: stand-by and normal mode
• I2C interface up to 3.4MHz
• MCP2221 USB to I2C bridge for easy GUI communication
• I2C on-the-fly EEPROM programmability, featuring:
− Buck and boost output voltage scaling
− Power-on-reset threshold and delay
− Power-up sequencing/sequencing delay
− Buck and boost current limit
− Buck and boost pull-down when disabled
− Individual ON, OFF, and standby modes
− Soft-start and global power-good masking
• 23μA buck typical quiescent current
• 70μA boost typical quiescent current
• 1.5% output accuracy over temperature/line/load
• 2.0MHz boost switching frequency
• 1.3MHz buck operation in continuous mode
• Ultra-fast buck transient response
• less then 15mm × 15mm × 1.25mm solution size
• Thermal-shutdown and current-limit protection
1x MIC7400 5 buck 1 boost Progr Reg Eval Bd (ADM00811)
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| I2C Monitor GUI | Other Board Design Files | Download | ||
| MIC7400 Data Sheet | Data Sheets | Download | ||
| MIC7400/MIC7401 Programming Board User's Guide | User Guide | Download | ||
| MIC7400 5 buck 1 boost Progr Reg Eval Bd (ADM00811) BOM | Board Design Files | Download | ||
| MIC7400 5 buck 1 boost Progr Reg Eval Bd (ADM00811) Gerber | Board Design Files | Download | ||
| MIC7400 5 buck 1 boost Progr Reg Eval Bd (ADM00811) Schematic | Board Design Files | Download | ||
| MIC7400/MIC7401 Sell Sheet | Brochures | Download |
