2535-adm00809
2535-adm00809

Part Number: ADM00809

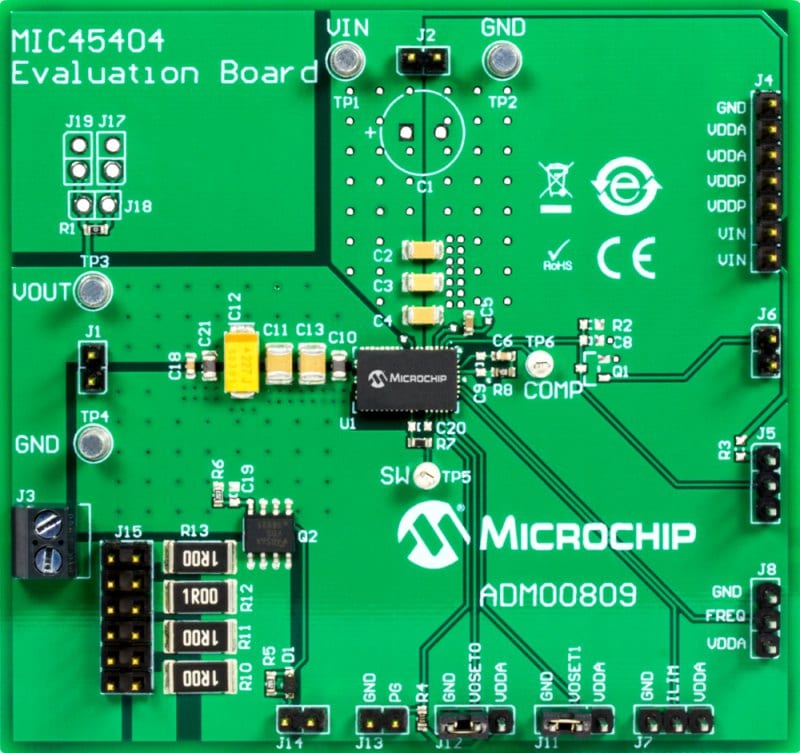

MIC45404 EVAL BOARD

• Input Voltage Range: 4.5V to 19V
• Output Current: Up to 5A
• Pin-Selectable Output Voltages: 0.7V, 0.8V, 0.9V, 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V
• Pin-Selectable Current Limit
• Pin-Selectable Switching Frequency
• -40°C to +125°C Junction Temperature Range

View Purchasing Options
Contact Us

Overview

The MIC45404 Evaluation Board is used to evaluate the MIC45404 Module, which is optimized for high efficiency at low output voltage and incorporates a DC to DC regulator, bootstrap capacitor, high-frequency input capacitor and an inductor. The input voltage range for this board ranges from 4.5V to 19V while the output voltage is pin selectable from 0.7V to 3.3V at 5A. Additionally, an on-board load transient generator circuit and connections for loop gain measurements are provided.

Package Contents

• 1 x MIC45404 Evaluation Board

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MIC45404 Evaluation Board (ADM00809) Gerbers Download 0481a184-9b7c-4287-bbd8-01cf10530ee2
MIC45404 Evaluation Board (ADM00809) Schematic Download e98ccbb2-6045-4e90-8345-120694fe9686
MIC45404 Evaluation Board (ADM00809) BOM Download d2f743d4-929a-49d4-ad16-1d646b93b45a
MIC45404 Data Sheet Download f698f7d0-d931-44ba-b6f8-9bdea43ad5c6
