Part Number: ADM00808

MCP1810 ULTRA LOW IQ EVALUATION BOARD

Allows powering the MCP1810 and testing it’s output voltage, shutdown functionality or experimenting with different ESR values.

View Purchasing Options
Contact Us

Overview

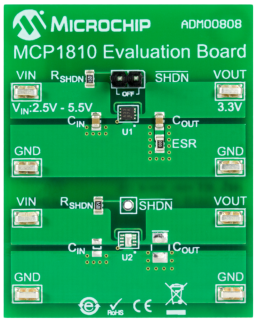

The MCP1810 Evaluation Board allows the evaluation of the MCP1810’s Ultra Low Iq features or experimenting with output capacitors ESR. Also a second unpopulated circuit is present allowing for a second MCP1810 to be placed allowing for a custom configuration of your choosing.

Package Contents
  • MCP1810 Evaluation Board (ADM00808)
  • Information Sheet
