Part Number: ADM00707

MCP37X1X-200 12-BIT EVALUATION BOARD

User Guide: PDF
MCP37X1X-200 12-Bit Evaluation Kit User's Guide
View Purchasing Options
Contact Us

Overview

The MCP37X1X-200 12-bit Evaluation Board (ADM00707) provides the opportunity to evaluate the performance of the MCP37X1X-200 Device Family. With the MCP37D11-200, 12-bit 200 Msps pipelined A/D converter on-board, the user can evaluate the functionality of the 12-bit 200 Msps A/D converters and the digital signal processing features. With the help of a compatible data capture card, the evaluation board can provide the user with performance analysis features through the PC GUI.

For proper operation, this evaluation board must be used with the following compatible data capture card:
MCP37XXX High-Speed Pipeline ADC Data Capture Card (ADM00506)

  • Full feature evaluation of the MCP37X1X-200 A/D converters through Graphical User Interface (GUI) including:
    • Dynamic performance monitoring: SNR, SFDR, THD, and other FFT analyses
    • Static performance monitoring: INL, DNL, Offset Error, etc.
    • Various digital signal post processing options: Digital Decimation, Digital Down-Conversion (I/Q Data)
  • Power consumption analysis
  • Sample rates up to 200 Msps
  • Up to 8-channel inputs
  • 1x MCP37X1X-200 12-bit Evaluation Board (ADM00707)
  • 1x 5V Wall Mountable Switching Power Supply

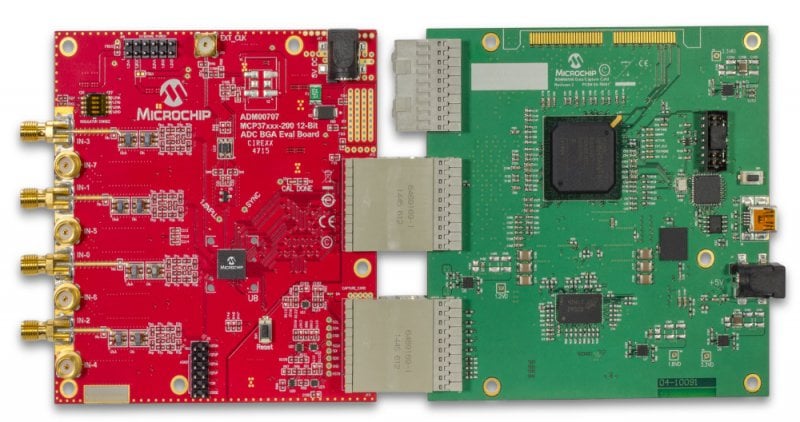

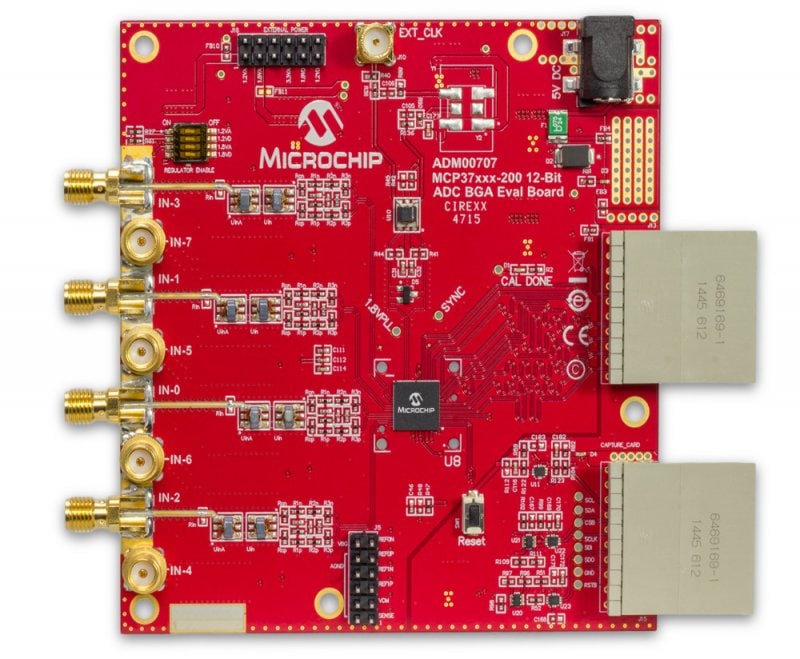

1552-adm00707-1.jpg 1553-adm00707-2.jpg

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
Pipeline ADC Utility (v1.3.10) Software Libraries and Firmware Download
MCP37211-200/MCP37D11-200 Data Sheet Data Sheets Download
MCP37X1X-200 12-Bit Evaluation Kit User's Guide User Guide Download
MCP37x1x-200 12-Bit Evaluation Board (ADM00707) Schematics Board Design Files Download
MCP37x1x-200 12-Bit Evaluation Board (ADM00707) BOM Board Design Files Download
MCP37x1x-200 12-Bit Evaluation Board (ADM00707) Gerber Files Board Design Files Download
MCP37x1x-200 12-Bit Evaluation Board (ADM00707) Design Files Other Board Design Files Download
