Part Number: ADM00672

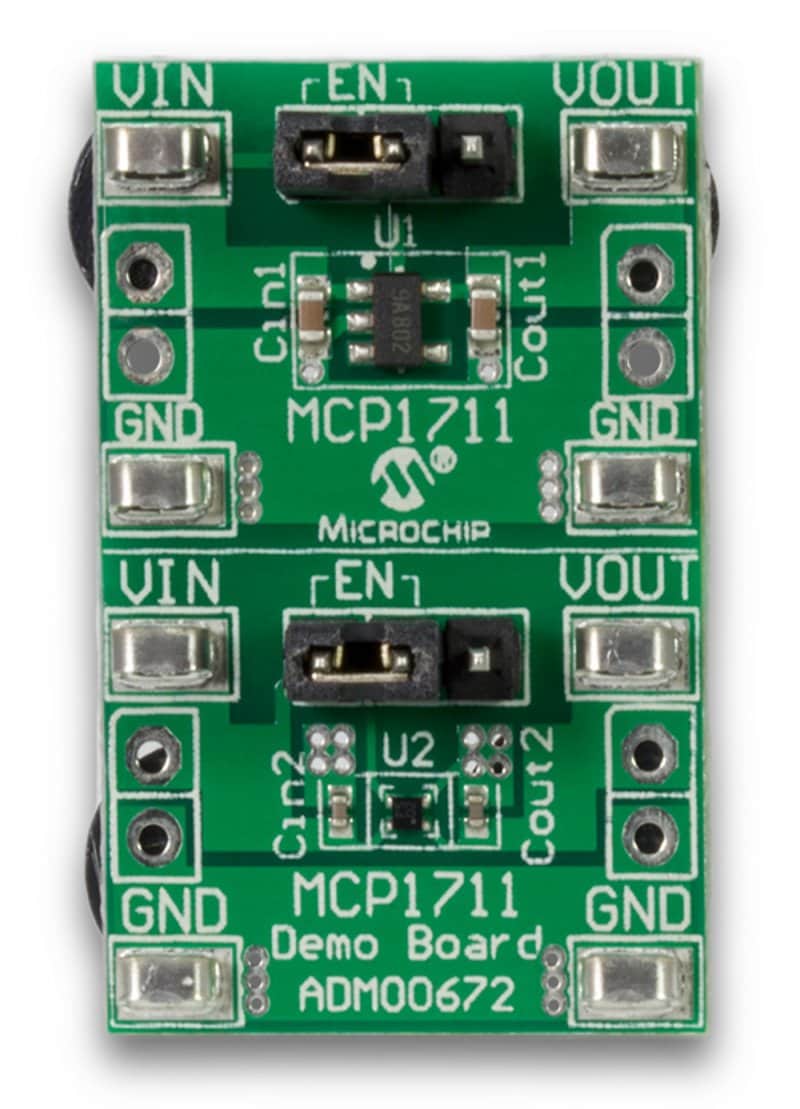

MCP1711 DEMO BOARD
- Two Output Voltage Options: 1.8V and 3.3V
- Two Package Options: SOT23-5 and 1x1 UQFN
- Ultra Low Quiescent Current of 600nA
- 150mA Output Current
- Capless Compatible (1µF capacitor for better transient performance)
- EN Input Test Point
- Input voltage range:
- 3.2V to 6V for VR = 1.8V
- 4V to 6V for VR = 3.3V
Overview
The MCP1711 Demonstration Board is used to evaluate and demonstrate Microchip Technology’s MCP1711 Ultra-Low Quiscent Current, Capless LDO over a wide input voltage and load range.
The board features two voltage options (1.8V and 3.3V) and two package options (5-Lead SOT-23 and 1x1 UQFN). Test points are provided for input and output, allowing the board to be connected directly to a system. The two LDO’s can be powered and used independently. Header pins are used in order to enable and disable the MCP1711 with either a jumper or an external voltage source.
Package Contents
- MCP1711 Demo Board (ADM00672)
