Overview

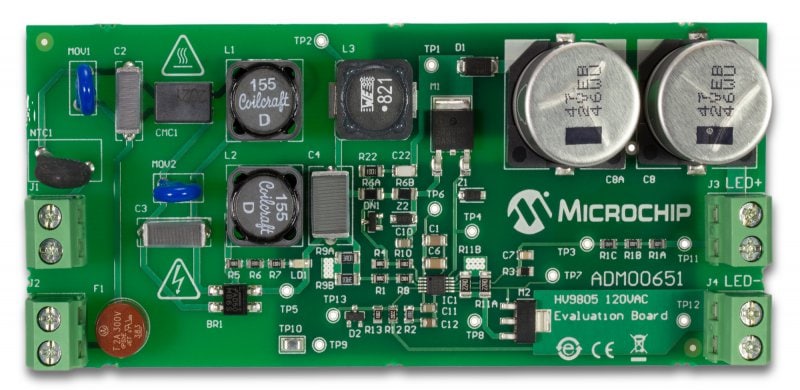

The HV9805 120VAC Off-Line LED Driver Evaluation Board is used to evaluate and demonstrate Microchip Technology Inc.'s HV9805 device in the following topology:
- 215-265V output Boost Converter application followed by a LED-side linear current regulator, supplied from the mains 120VAC, to drive a 70-90 LED string.
- The HV9805 120VAC Off-Line LED Driver Evaluation Board was developed to help engineers reduce the product design cycle time.
The HV9805 120VAC Off-Line LED Driver Evaluation Board has the following features:
- Input Voltage: 120VAC±15%, at 50 Hz Typical
- Output Capability: up to 125 mA
- Efficiency: over 90%
- Pulse-Width Modulation (PWM) Operation: up to 135 kHz
The HV9805 120VAC Off-Line LED Driver Evaluation Board kit includes:
- HV9805 120VAC Off-Line LED Driver Evaluation Board (ADM00651)
- Information Sheet
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| HV9805 120VAC Off-Line LED Driver Evaluation Board User’s Guide | User Guide | Download | ||
| HV9805 120V Boost Schematic | Board Design Files | Download | ||
| HV9805 120V Boost Gerber | Board Design Files | Download | ||
| HV9805 120V BOM | Board Design Files | Download | ||
| HV9805 Data Sheet | Data Sheets | Download |
