Overview

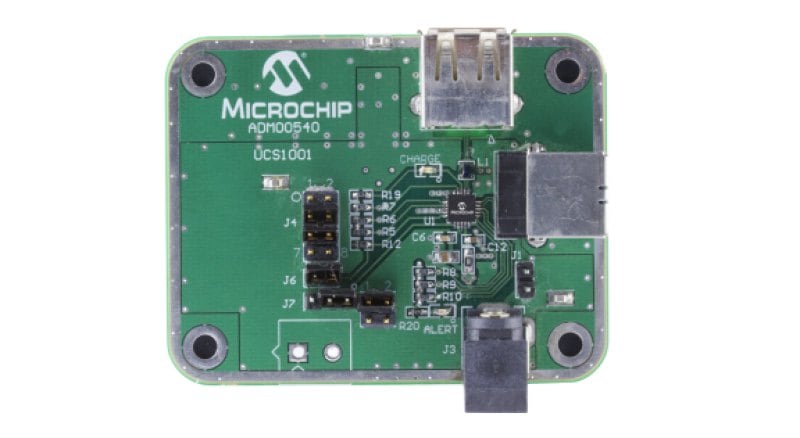

The UCS1001 Evaluation Board is intended for evaluation of stand-alone USB charging. The UCS1001 supports popular emulation profiles for Apple, Samsung, and BC1.2 compliant devices. Jumper configurations allow selection of operation for Dedicated Charging Emulation, Charging Downstream Port, Standard Downstream Port, and USB Pass Through.
Devices Supported: UCS1001
- Dedicated charger emulation for popular downstream USB devices such as tablets and smart phones
- Configurable through jumper pins
- Selection of current limit and fault handling
- Fully BC1.2 compliant
- 1x UCS1001 Evaluation Board
- 1x 5V Wall Transformer
