Overview

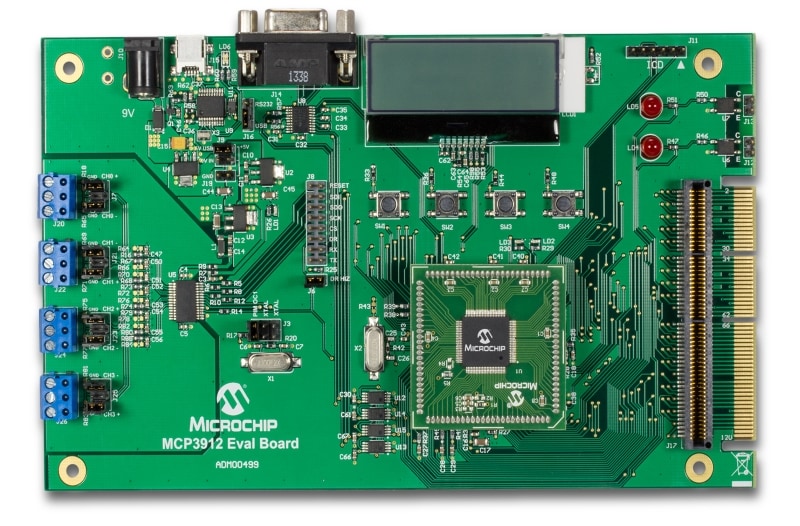

The MCP3912 ADC Evaluation Board system provides the opportunity to evaluate the performance of the MCP3912 four-channel Analog Front End (AFE). It also provides a development platform for 16-bit microcontroller-based applications, using the existing 100-pin PIC ® microcontroller Plug-in Module (PIM) systems that are compatible with Explorer 16 Evaluation Board (DM240001) and other high pin count PIC-based demo boards. The system comes with a programmed PIC24FJ256GA110 PIM module that communicates with the Hi-Resolution ADC Utility (formerly the Energy Management Utility) software for data exchange and ADC setup. This software communicates via a USB connection to the board. A download link for this software can be found below. For instructions on the use of this software, refer to the supporting documentation included within the application installation package.
• Four-channel ADC MCP3912 output display using serial communication to the PC software interface.
• Simultaneous 57 ksps at OSR32 address loop ALL or 95 dB SINAD at OSR512 performance on MCP3912.
• System and ADC performance analysis through graphical PC tools showing noise histogram, frequency domain (FFT), time domain scope plot, and statistical numerical analysis.
• Robust hardware design with analog grounding and analog/digital separation, allowing low noise evaluation of the MCP3912 device; includes separate power supplies and power planes on a four-layer board.
• PICtail™ Plus connectors for Explorer 16 daughter board compatibility.
• 1x MCP3912 ADC Evaluation Board (ADM00499)
• 1x Mini-USB cable
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Energy Management Utility (v1.4.5) | Software Libraries and Firmware | Download | ||
| Hi-Resolution ADC Utility (v1.7.1) | Software Libraries and Firmware | Download | ||
| MCP3912 ADC Evaluation Board (ADM00499) Firmware v1.0.0 | Software Libraries and Firmware | Download | ||
| MCP3912 User's Guide | Miscellaneous | Download | ||
| MCP3912 ADC Evaluation Board (ADM00499) Schematics | Board Design Files | Download | ||
| MCP3912 ADC Evaluation Board (ADM00499) Gerbers | Board Design Files | Download | ||
| MCP3912 ADC Evaluation Board (ADM00499) BOM | Board Design Files | Download | ||
| MCP3912 ADC Evaluation Board (ADM00499) Design Files | Other Board Design Files | Download | ||
| MCP3912 ADC Evaluation Board (ADM00499) 3D PDF | Other Board Design Files | Download |
