142-emc2103
142-emc2103

Part Number: ADM00493

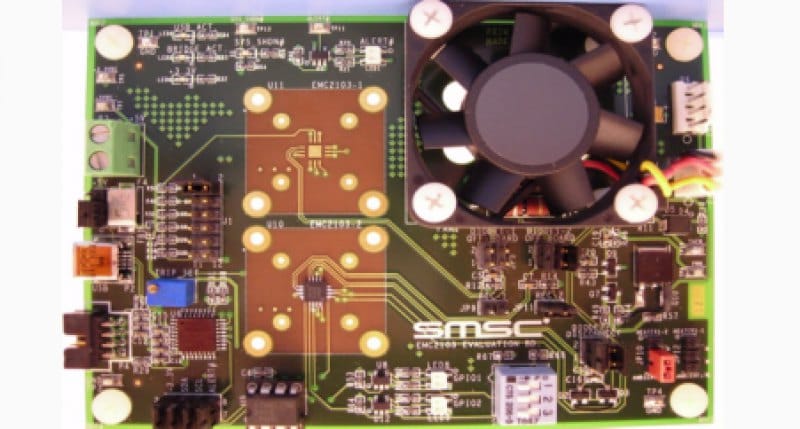

EMC2103 QUAD TEMP. SENSOR AND SINGLE FAN CONTROLLER EVAL BOARD

  • Headers are provided for connecting a remote diode or CPU/GPU
  • An external SMBus master may also be used via jumper settings
  • The Chip Manager application that comes with the EVB allows viewing and changing register values, graphing of any register, autonomous register loading via included EEPROM and more
  • Resistance Error Correction Verification

    • Overview

    The EMC2103 Quad Temperature Sensor and Single Fan Controller Evaluation Board is a USB-based platform that provides the means to demonstrate EMC2103 features and to view and modify registers. LEDs indicate status information and test points are included to monitor system voltages with a user provided voltmeter or oscilloscope.

    Devices Supported:  EMC2103
