Part Number: ADM00492

EMC2101 DUAL TEMP. SENSOR AND SINGLE FAN CONTROLLER EVALUATION BOARD

  • Chip Manager software allows viewing and changing register values
  • Graphing of any register
  • Headers for connecting a remote diode or CPU/GPU thermal diode
  • Resistance Error Correction verification
  • Autonomous register loading via included EEPROM (EMC2101-R only)
  • USB communications to evaluation board
  • An external SMBus master may also be used via jumper settings

    • Overview

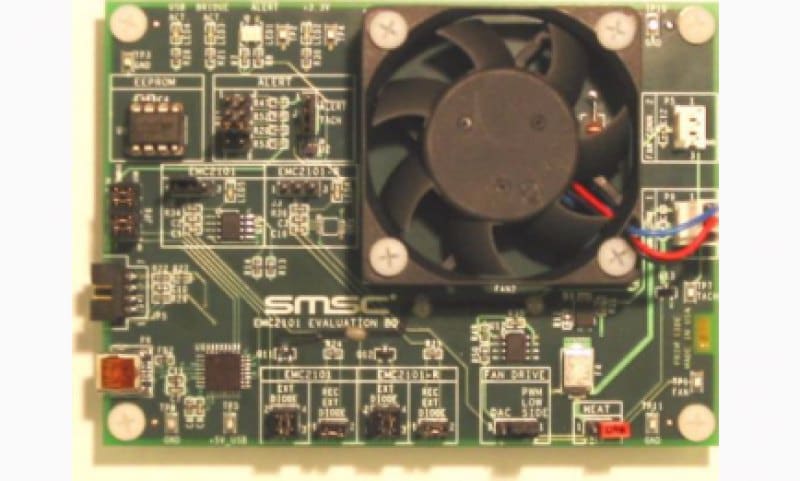

    The EMC2101 Dual Temperature Sensor and Single Fan Controller Evaluation Board is a USB-based platform that provides the means to demonstrate EMC2101 features and to view and modify registers. A +5V is provided to demonstrate the fan control functionality. LEDs indicate status information and test points are included to monitor system voltages with a user provided voltmeter tor oscilloscope.
