Part Number: ADM00419

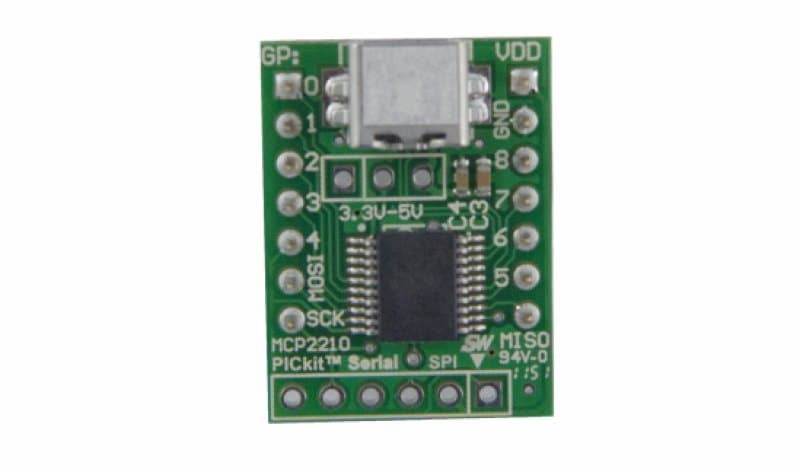

MCP2210 BREAKOUT MODULE

User Guide: PDF
MCP2210 Breakout Module User's Guide
View Purchasing Option
Contact Us

Overview

The MCP2210 Breakout Module can be used with either the MCP2210 Motherboard or as a standalone USB to SPI (Master) bridge module. The breakout board provides all the needed signals in order to assist the user in building their own boards using the MCP2210. The MCP2210 Utility software allows custom device configuration. In addition, a DLL package is also available in order to allow development of custom software utilizing the MCP2210.

Devices Supported:  MCP2210



  • Small plug-in board with DIP form factor (2, 10-pin headers spaced at 0.6 inches)
  • Mini-USB connector
  • Access to the SPI bus signals (MOSI, MISO, SCK)
  • 9 GP lines, configurable for GPIO, Chip Select or dedicated function operation
  • PICkit Serial Analyzer compatible header
  • 3.3 or 5V jumper selectable VDD
  • Able to supply up to 500mA to the rest of the system

    •

    Cannot load image!

    Documentation

    Filter by Document Type
    Search Documentation
    Title
    Document Category
    MCP2210 Utility v1.2.3 Software Libraries and Firmware Download
    MCP2210 DLL (v2.1) Software Libraries and Firmware Download
    MCP2210 DLL Software Libraries and Firmware Download
    MCP2210 Command Line Interface (v1.0.0) Software Libraries and Firmware Download
    MCP2210 Terminal Android App Software Libraries and Firmware Download
    MCP2210 Breakout Module (ADM00419) Gerbers Board Design Files Download
    MCP2210 Breakout Module (ADM00419) BOM Board Design Files Download
    MCP2210 Breakout Module (ADM00419) Schematics Board Design Files Download
    MCP2210 Breakout Module User's Guide User Guide Download
    MCP2210 SPI Terminal v1.0 Software Libraries and Firmware Download
    MCP2210 USB-to-SPI Protocol Converter with GPIO (Master Mode) Data Sheets Download
    MCP2210 - USB to SPI Protocol Converter with GPIO (Host Mode) Data Sheets Download
