Part Number: AC320004-5

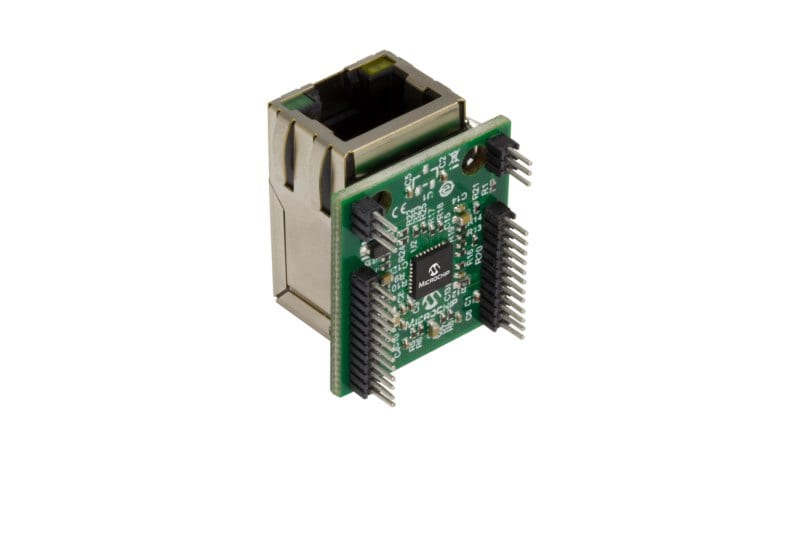

AC320004-5 - KSZ8041 PHY DAUGHTER BOARD

View Purchasing Options
Contact Us

Overview

The KSZ8041 PHY Daughter Board (AC320004-5) enables Ethernet communication with a variety of Microchip starter kits. This daughter board is designed specifically to be used with the PIC32 Ethernet Starter Kit II (DM320004-2) or the PIC32MZ Embedded Connectivity with Floating Point Unit(EF) Starter Kit (DM320007); however, it can also be used with other Microchip development hardware.

Features of the KSZ8041 PHY Daughter Board includes:
• RMII interface with MDC/MDIO management interface for register configuration
• Single-Chip 10BASE-T/100BASE-TX Physical Layer Solution
• Fully compliant to IEEE 802.3u standard
• Low-power CMOS design, power consumption of <180 mW
• HP Auto MDI/MDI-X for reliable detection and correction for straight-through, and crossover cables with disable and enable options
• Robust operation over standard cables

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
KSZ8041 PHY Daughter Board Information Sheet Brochures Download
