Overview

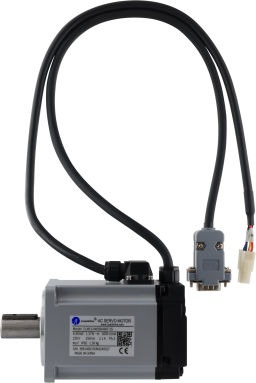

The Leadshine (ELM1S-0400BH60F-SS) 400W 220VAC Brushless AC Servo Motor is designed for high-torque industrial applications. A 2,500-line incremental encoder is attached for servo positioning. The rated speed is 3,000 RPM and the peak speed is 5,000 RPM. The rated torque is 1.27 Nm, and a peak torque of 3.81Nm. It responds quickly and moves quietly and smoothly with high precision for control systems. The cables are included. This motor has been tested with Microchip's high-voltage dsPIC motor control application notes and motorBench(R) Development Suite using the MCS MCHV-230VAC-1.5kW motor control development board.
• 60mm frame compact size
• 400W rated power
• 10-pole design for excellent performance
• 220 VAC rated voltage
• 2,500 line incremental encoder with A, B and indexing signals (AMP 3x5 connector)
• 1.27 Nm (11.24 lb-in) rated torque / 3.81 Nm (33.72 lb-in) peak
• 2.1A rated / 6.5A peak current
• 3,000 RPM rated speed / 5,000 peak
• Excellent torque overload capacity, response and acceleration
• Extra smooth movement with high precision
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Leadshine ELM1S-0400BH60F-SS Servo Motor Data Sheet | Data Sheets | Download |
| Tool Details |
|---|
The Motor Control System (MCS) Development Tool Ecosystem enables you to rapidly develop motor control designs controlled by dsPIC® DSCs, SAM, PIC32MK, PIC32MC, and PIC32C MCUs. The MCS Development Tool Ecosystem consists of modular and interchangeable inverter boards, controller boards (Dual In-line Modules or DIMs), and Xplained Pro headers for user defined expansion. The MCHV-230VAC-1.5kW Motor Control High-Voltage Development Board is targeted to drive a three-phase Permanent Magnet Synchronous Motor (PMSM), Brushless DC (BLDC) Motor or an AC Induction Motor (ACIM) in both sensored and sensorless operation.
|
