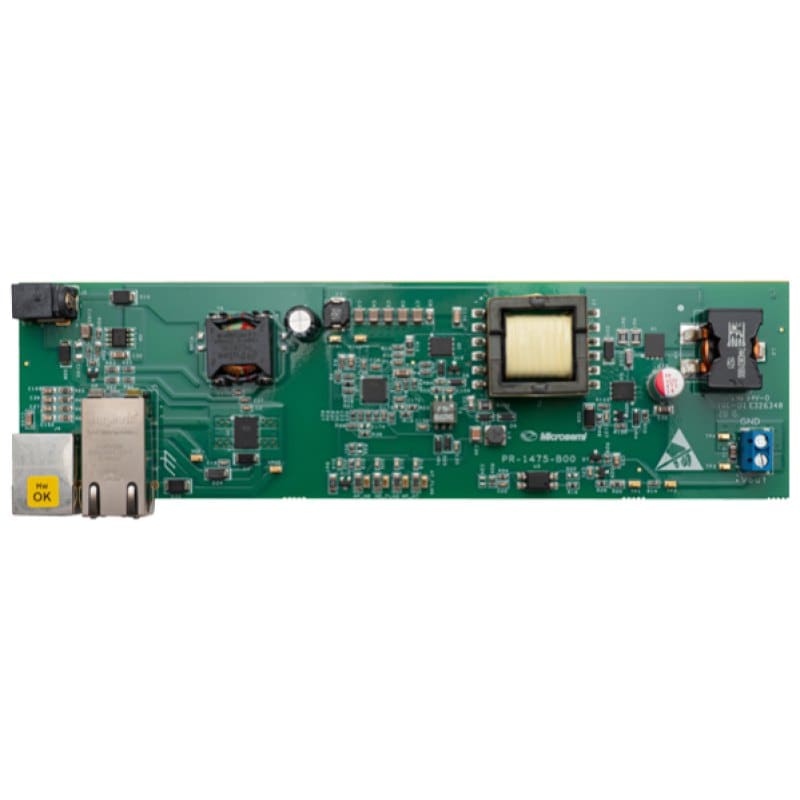

3133-pd70211evb72fw-12
3133-pd70211evb72fw-12

Part Number: PD70211EVB72FW-12

PD WITH PD70211 12V 6A, FWD

  • Featuring PD70211 and PD70224
  • IEEE 802.3af/at/Dual-AT/POH standard compliant
  • 72W – 12V / 6A output voltage / current
  • Forward topology Wall adaptor support
  • Power is supplied through the 4-pairs of the Cat5 cable
  • Wall adapter input – standard barrel jack available for connecting to an external 48V - 54V wall adapter
  • Data pass-through connector
  • On board LED indicators: PSE class type; 2,3,4 and 6-events
  • On board power good LED indicator which may be configured to monitor PD front end or VPP UVLO
  • Ta: -40°C to +70°C (with derating curve)
  • RoHS compliant
View Purchasing Options
Contact Us

Overview

The PD70211EVB72FW-12 evaluation board provides designers with an environment needed for evaluating the performance and implementation of PD applications based on PD70211 controller. The board is using a single PD controller, PD70211ILQ, to support the detection, class, and power supplying phases on the 4 pairs of the Cat5 cable. The board supports sync detection of the 4 pairs. PD70211ILQ supports the current of the HDBaseT over 4 pairs, which is more than twice the power of a standard IEEE 802.3at Type 2 interface.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PD70211EVB72FW-12 Design Files Download c97fea61-84e5-4e67-ab45-4be627638321
PD70211EVB72FW-12 User Guide Download a854383e-74a5-4a54-850d-53e20d683b25
