pm-25-107092-250701-ncs-photo-ev89p81a-front-transparent
pm-25-107092-250701-ncs-photo-ev89p81a-front-transparent

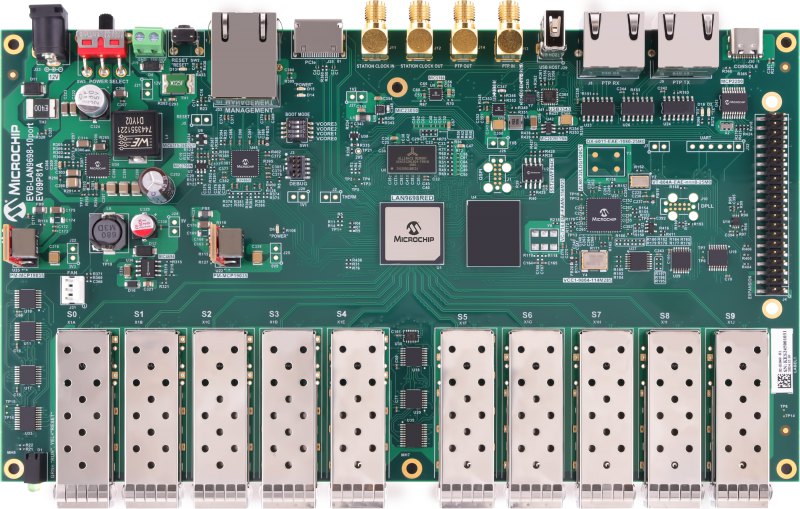

Part Number: EV89P81A

LAN969x 10x 10G EVB

  • 10x 10G Ethernet Development Board
  • 10x 10G SFP+
View Purchasing Options
Contact Us

Overview

The LAN969x EVB (EV89P81A) is a 10x 10G Ethernet development system that can be used to demonstrate the LAN9694, LAN9696 and LAN9698 Ethernet switches.

WebStaX, SMBStaX, IStaX Binary Image Files are available on the Microchip SDE.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EV89P81A_Reference Design Schematic Download 4220be56-4a20-45e2-90c4-c7ba8e901f43
EV89P81A_Reference Design Layout Files Download 4b4b5f31-57d8-419a-afe7-cc413fa7b70b
EV89P81A_Reference Design Gerber Files Download 5c16eb72-baaf-4010-8ad4-a412cbc4842b
EVB-LAN9698-10port Hardware Manual Download 9f93b6f3-3477-4d42-a31f-df4ee2f9ade4

Silicon Products

Product
Title
Product
Title
LAN9694 48G Ethernet Switch LAN9694 48G Ethernet Switch
LAN9696 66G Ethernet Switch LAN9696 66G Ethernet Switch
LAN9698 102G Ethernet Switch LAN9698 102G Ethernet Switch
