Overview
The ATA8510 Curiosity Board serves as an all-in-one platform for evaluating and developing applications utilizing ATA8510 or ATA8515, which are highly integrated, low-power RF transceivers.
This board is specifically designed for creating wireless communication solutions within the sub-GHz frequency bands. It supports both stand-alone and attach modes of operation and includes expansion headers to facilitate easy prototyping and testing.
The ATA8510 Curiosity Board is ideal for industrial and consumer market applications, offering a robust and flexible environment for developers to innovate and refine their designs.
Getting Started: EV82M22A Board Out of the Box Demo
- ATA8510 sub-GHz RF transceiver microcontroller
- Compatible with 3.3 and 5V power supplies (via USB Type-C® cable or host board)
- mikroBUS™ header interface with host board support
- Two power indicator LEDs, two user configurable LEDs, one user configurable switch, one reset switch
- One 20-pin GPIO expansion header
- Integrated 24.305 MHz crystal
- ISP header for use with an external debugger such as ATMEL-ICE
- U.FL mounting pad to evaluate an external antenna

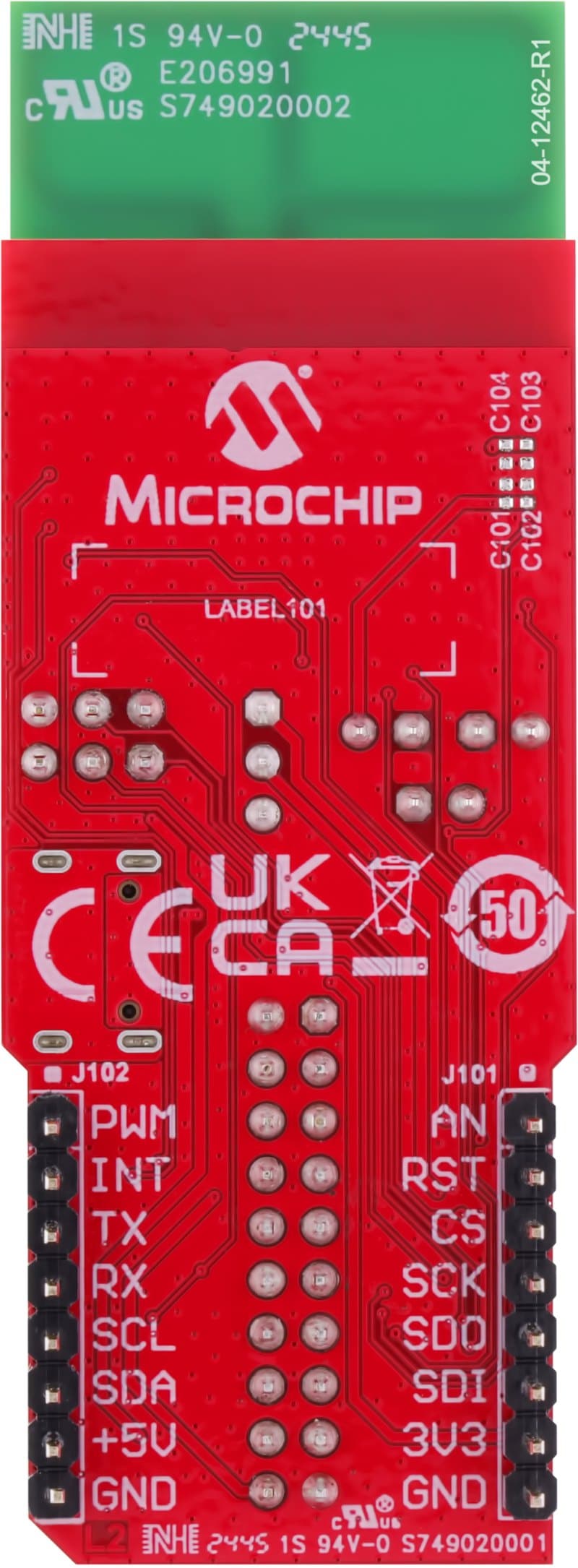

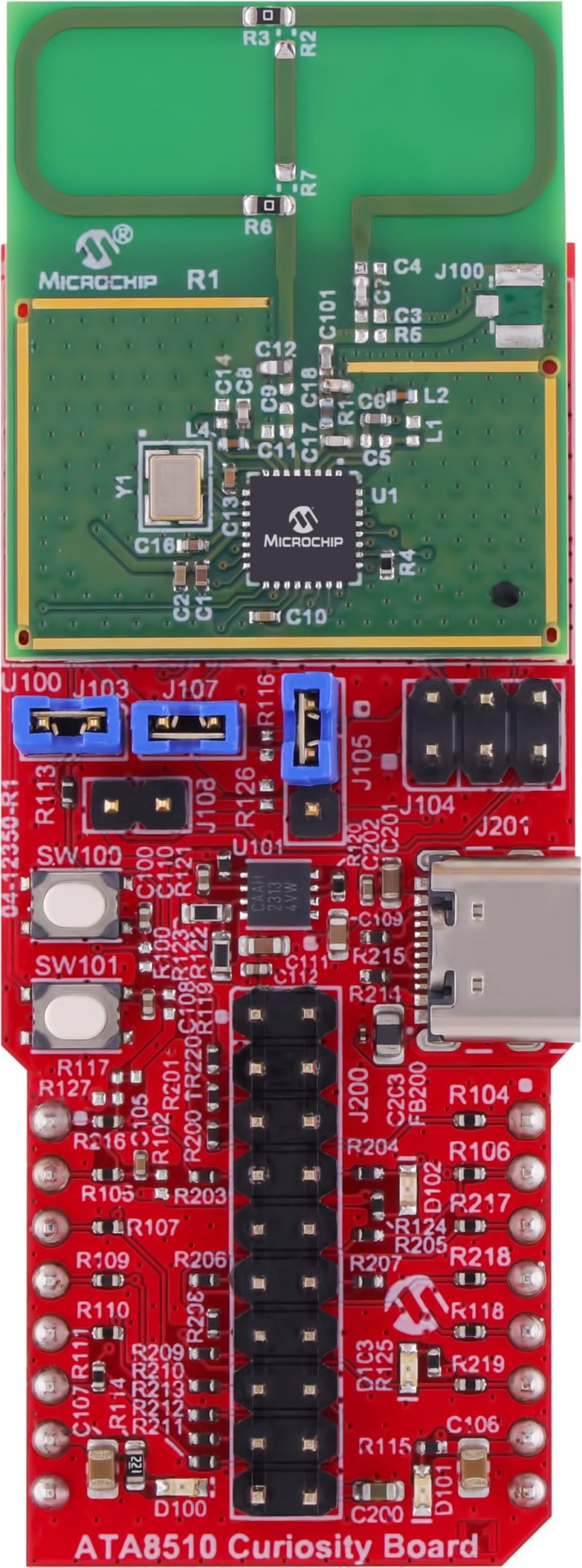

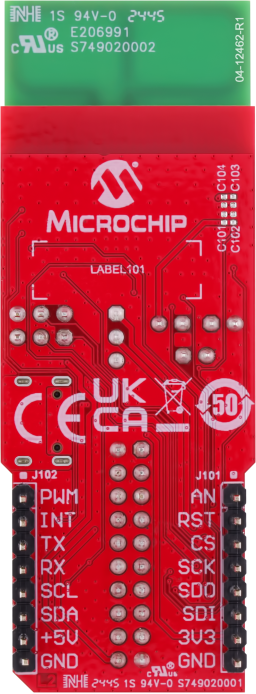

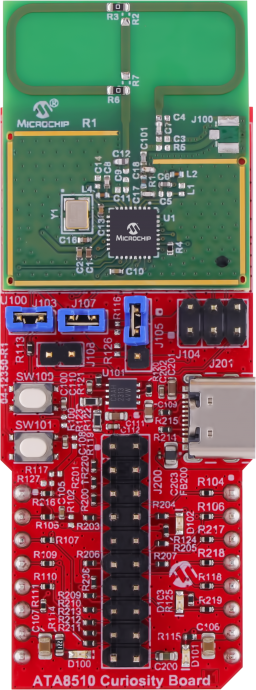

ATA8510 Curiosity Board
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| ATA8510/15 Industrial Data Sheet | Data Sheets | PDF | HTML | ||
| ATA8510 Curiosity Board User's Guide | User Guide | PDF | HTML | ||
| ATA8510 Curiosity Board Out-of-Box Demo | Code Examples | Link | ||
| ATA8510/15 Application Developer's Guide | User Guides | Link | ||
| Harmony 3 Wireless Application Examples for ATA851x | Code Examples | Link | ||
| EV82M22A Curiosity Board Hardware Design Documentation | Board Design Files | Download | ||
| EV82M22A Regulatory Approval Documentation | Certifications | Download |
| Tool Details |
|---|
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
|
| Tool Details |
|---|
Microchip Studio is an Integrated Development Platform (IDP) for developing and debugging AVR® and SAM microcontroller applications. It merges all of the great features and functionality of Atmel Studio into Microchip’s well-supported portfolio of development tools to give you a seamless and easy-to-use environment for writing, building and debugging your applications written in C/C++ or assembly code. Microchip Studio can also seamlessly import your Arduino® sketches as C++ projects to provide you with a simple transition path from makerspace to marketplace.
|
| Tool Details |
|---|
Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.
|
