Overview
Take your next idea to market with a development board that you can keep in your pocket. With full program and debug capabilities, the ATtiny3217 Curiosity Nano Evaluation Kit offers complete support for your next design.
Use either Atmel Studio 7 or MPLAB X IDEs as a magnifying glass to look into your MCU and step through the debug. Free, easy-to-use graphical programming tools, Atmel START and MPLAB Code Configurator (MCC), allow you to intuitively program the target MCU.
- ATtiny3217 microcontroller
- One mechanical user switch
- One yellow user LED
- On-board debugger
- Board identification in Atmel Studio/Microchip MPLAB X
- One green power and status LED
- Programming and debugging
- Virtual serial port (CDC)
- Two logic analyzer channels (Debug GPIO)
- USB powered or externally powered
- Adjustable target voltage
- MIC5353 LDO regulator controlled by the on-board debugger
- 1.8 - 5.1 V output voltage (limited by USB input voltage)
- 500mA maximum output current

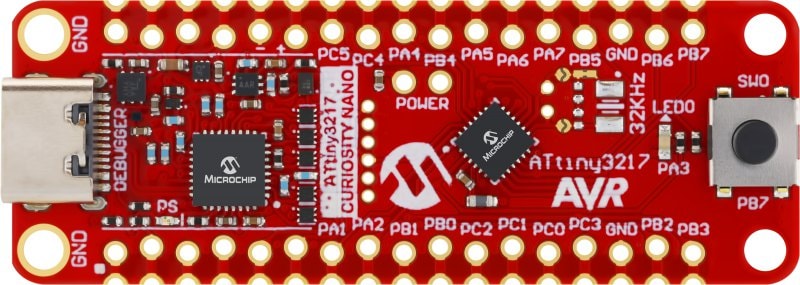

- ATtiny3217 Curiosity Nano evaluation board
- Two 100mil, 1x17 pin header strips
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| ATtiny3217 Curiosity Nano User Guide | User Guide | PDF | HTML | ||
| ATtiny3217 Curiosity Nano Schematics | Board Design Files | Download | ||
| ATtiny3217 Curiosity Nano Pinout | Board Design Files | Download | ||
| Curiosity Nano Explorer Pinouts | Board Design Files | Download | ||
| ATtiny3217 Curiosity Nano Design Documentation | Board Design Files | Download | ||
| ATtiny3217 Curiosity Nano Altium Project | Board Design Files | Download |
| Tool Details |
|---|
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
|
MPLAB XC Compilers are optimized C compilers for Microchip microcontrollers, offering high-performance code generation and integration with MPLAB Tools for VS Code and MPLAB X IDE.
|
| Tool Details |
|---|
The Microchip Curiosity Nano Touch Adapter is a hardware extension platform to ease the connection between Curiosity Nano kits and Xplained Pro touch extension boards.
The Curiosity Nano Touch Adapter bridges from the Curiosity Nano MCU kits to the XPRO connected touch extension boards. Its similar in purpose as the Curiosity Nano Base for Click boards™ (AC164162) yet focused on touch extension boards. |
| Tool Details |
|---|
The Microchip Curiosity Nano Base for Click boards™ evaluation kit is a hardware extension platform to ease the connection between Curiosity Nano kits and extension boards like the mikroBUS™ Click modules and Xplained Pro extension boards.
|
The Curiosity Nano Explorer lives up to its name by providing extensive on-board features that allow users to explore and experiment with the microcontroller peripherals of their Curiosity Nano development board. It also serves as an ideal platform to become familiar with Microchip's software offerings, including MCC Melody.
A wide selection of input and output options:
Solid support for serial communication:
Microchip’s complementary technologies:
Finally, if anything is missing on the Explorer, its functionality can be expanded via mikroBUS™, Grove or Qwiic® sockets. |
