Overview

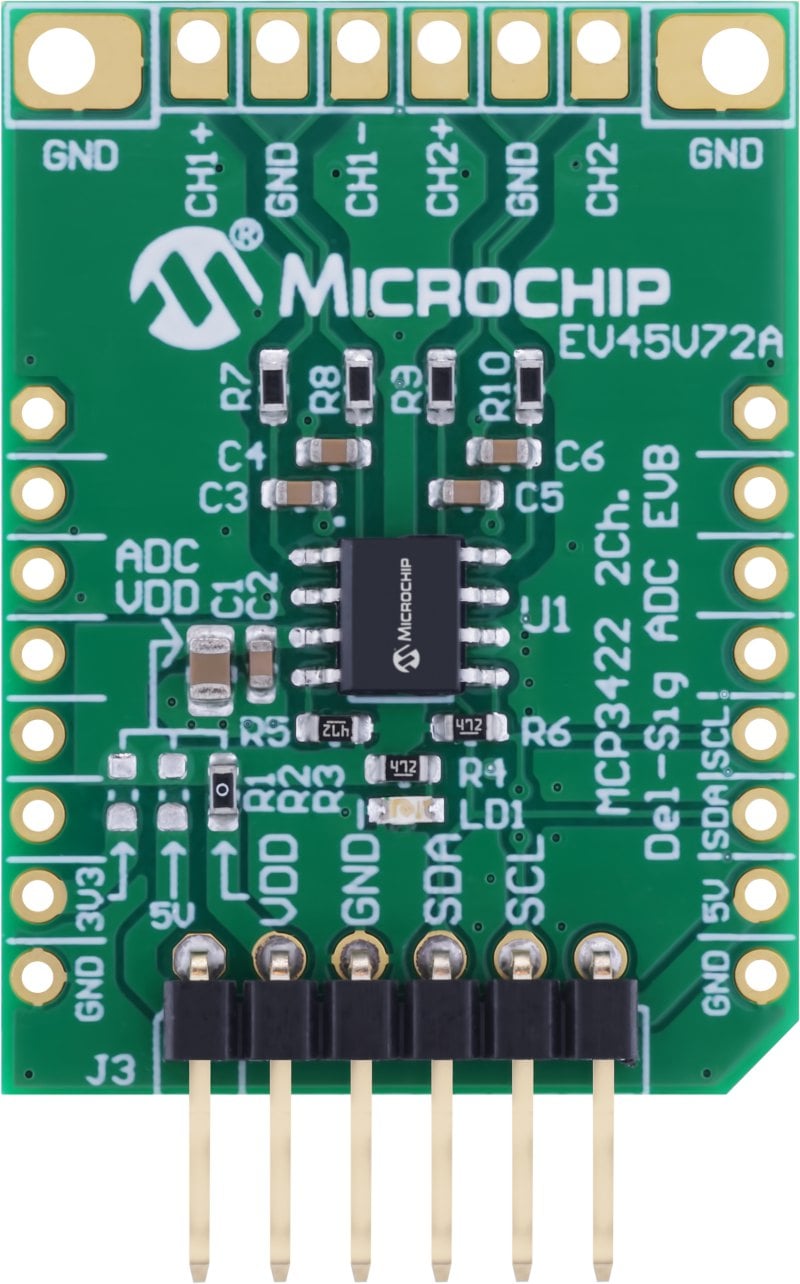

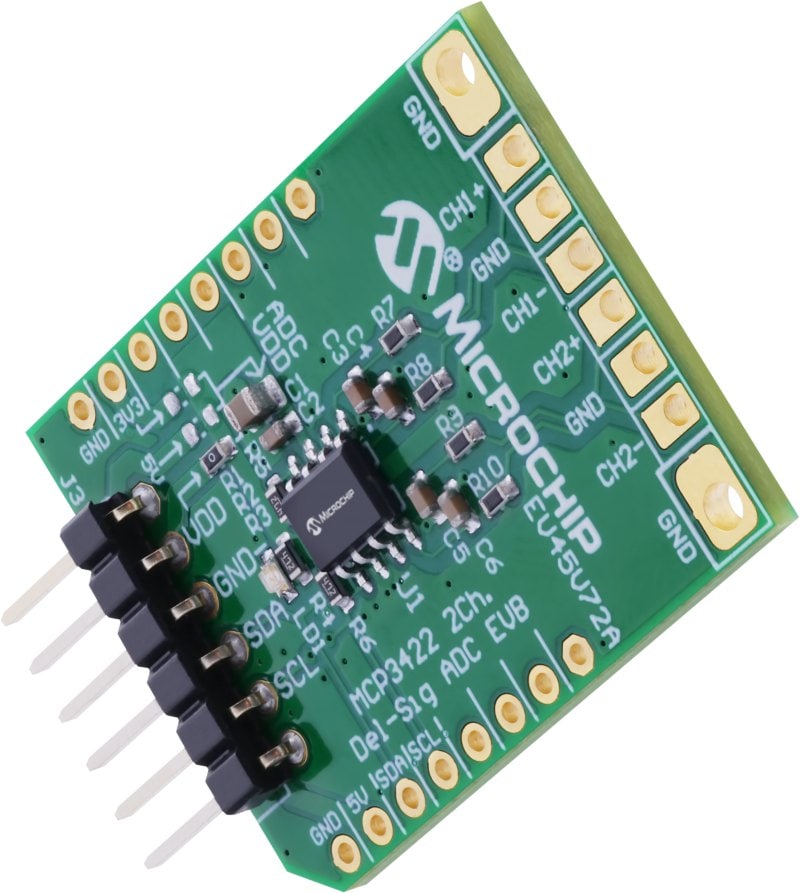

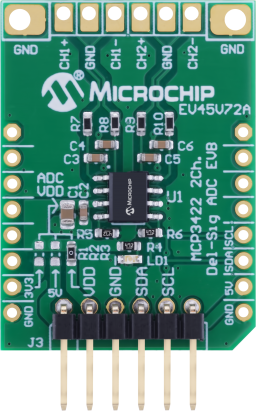

This board features the MCP3422 2Ch 18 bit ΔΣ ADC at 240SPS. Communication is done by the PICKit Serial, MCP2221A Breakout Module, or by Click-Board format for easy connectivity to a PC or Microcontroller platform. Numerous test points are provided to connect analogue signals towards the ADC.
- Click-Board format compatible with Curiosity platforms
- PICKit Serial/MCP2221A Breakout Module communication header available
- Selectable power supply level
- MCP3422 2-Ch Del-Sig ADC EVB (EV45V72A)
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EV45V72A BOM | BOM | Download | ||
| EV45V72A Schematics | Schematics | Download | ||
| EV45V72A Gerbers | Gerbers | Download | ||
| EV45V72A Design Files | Other Board Design Files | Download | ||
| EV45V72A 3D PDF | Other Board Design Files | Download | ||
| MCP3421-and-MCP3422-SOT-23-6-User-Guide-DS50003483.pdf | User Guide | Download | ||
| PICkit Serial Analyzer Scripts for MCP342x | Software Libraries and Firmware | Download | ||
| MCP2221A Breakout Module Scripts for MCP342x | Software Libraries and Firmware | Download | ||
| MCP3421/2/5 SOT-23-6 Evaluation Board User Guide | User Guide | Download |
