Part Number: EV11L78A

UPD301C Basic Sink Application Example

View Purchasing Options
Contact Us

Overview

Please Note: The UPD301C is not recommended for new designs, see the MCP22301.

The UPD301C Basic Sink Application Example Evaluation Kit is a low-cost evaluation platform for Microchip’s UPD301C Standalone Programmable USB Power Delivery (PD) Controller. This RoHS-compliant evaluation platform comes in a small form factor and adheres to the USB Type-C™ Connector Specification and USB PD 3.0 specification.

Powered by Microchip's versatile ​USB Power Delivery Software Framework (PSF), this evaluation platform provides a quick and easy way of replacing the standard power connector (barrel plug) in any application with a small form factor, reversible Type-C connector. This bus-powered evaluation platform supports Dead Battery mode and can sink up to 100W from any standard USB PD power supply.

With the PSF stack, this platform supports up to six configurable Power Delivery Objects (PDOs), all of which are selectable through the onboard rotary switch. The platform can also support unique custom PDOs with the additional configuration of the PSF PD stack if required.

    • UPD301C USB-C Power Delivery Controller

    • Ability to sink up to 100W

    • PDO Selector switch

    • Atmel ICE header for code access

    • Multiple test points

    One EV11L78A UPD301B Basic Sink Application Example

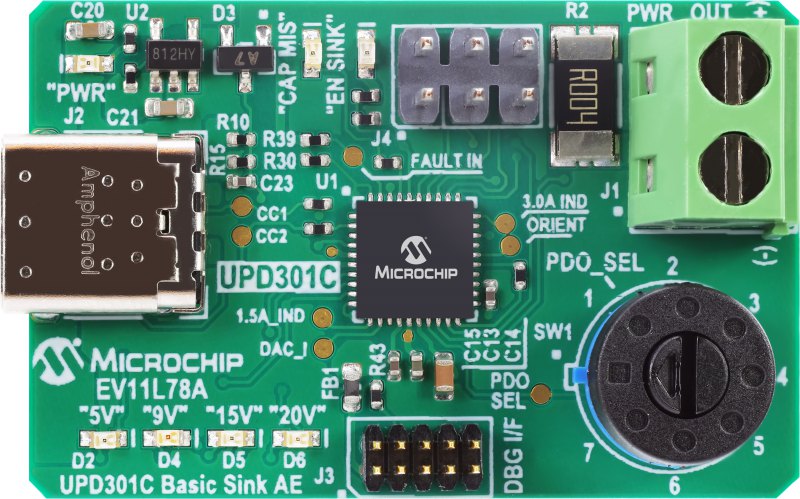

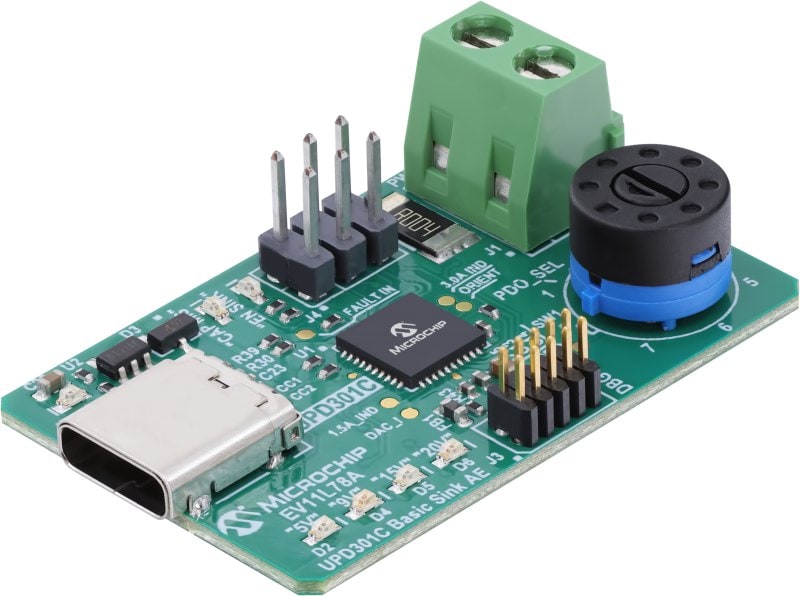

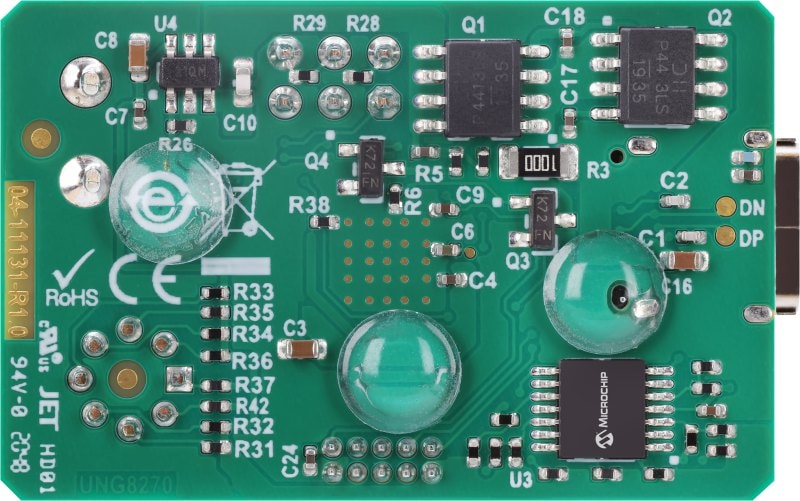

210427-UNG-PHOTO-EV11L78A-Angle-Transparent.png 210427-UNG-PHOTO-EV11L78A-Back-Transparent.png 210427-UNG-PHOTO-EV11L78A-Front-Transparent.png
