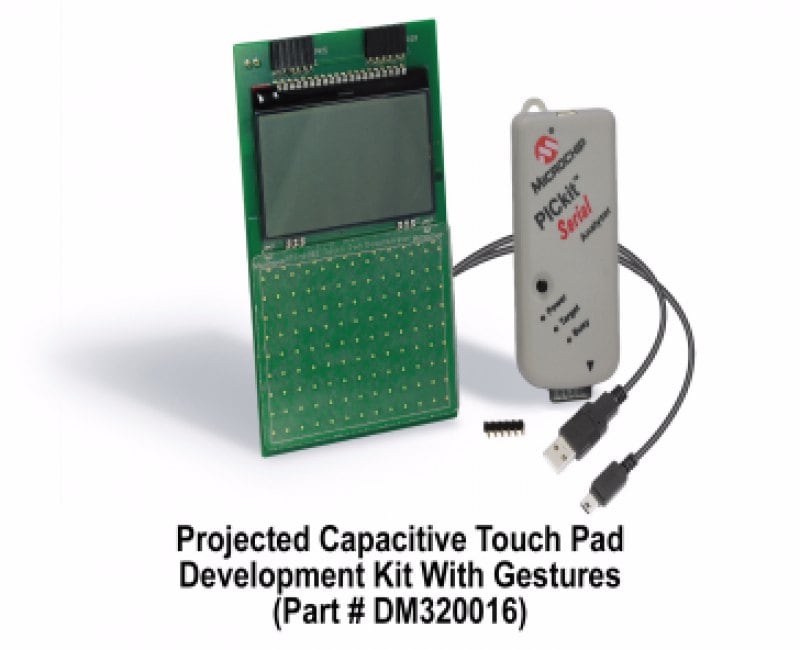

Microchip’s Projected Capacitive Touch Pad Development Kit with Gestures showcases the high performance, flexible design of Microchip’s MTCH6301 projected capacitive touch controller. This development kit also allows designers to test functionality including multi touch and gestures.
- Includes a modified MTCH6301 to provide touch input and also drive the dot-matrix LCD
- Multi -touch detection up to 8 touches
- Microchip’s CVD Capacitive Sensing Method
- Sleep with wake on touch
- Dual-touch drawing
- Single-touch gestures
- MTCH6301 Utility software allows observation of signals and tuning of firmware parameters
The kit comes complete with a development board containing a display and touchpad board including the modified MTCH6301 controller, a Mini USB cable, and a pre-programmed PicKit Serial Analyzer for USB-to-I2C communication. For the Projected Capacitive Configuration Utility (PCU) GUI application and more information about Microchip’s touch portfolio, please visit https://developerhelp.microchip.com/xwiki/bin/view/applications/touch-gesture/m-touch-mcc-classic/.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MTCH6301 Utility V 2.0X | Software Libraries and Firmware | Download | ||
| MTCH6301 Projected Capacitive Controller Product Brief | Data Sheets | Download | ||
| MTCH6301 Projected Capacitive Controller Data Sheet | Data Sheets | Download | ||
| DM320016 - PCAP Touch Pad Development Kit with Gestures | Data Sheets | Download | ||
| MTCH6301 FAQ - Sensor Design Guidelines | Supporting Collateral | Download |
