Part Number: DM320004

PIC32 ETHERNET STARTER KIT

User Guide: Download User Guides

Overview

This product is no longer available for sale.
The PIC32 Ethernet Starter Kit provides the easiest and lowest cost method to experience 10/100 Ethernet development with PIC32. Combined with Microchip's free TCP/IP software, your project will be running in no time. The PIC32 has an available CAN 2.0b peripheral and USB host/device/OTG.

The Ethernet Starter Kit has a form factor and expansion connector that are compatible with other PIC32 Starter Kits.

The PIC32 Ethernet Starter Kit runs on Microsoft Windows 2000, Windows XP, Windows Vista, and Windows 7.

Write Code
  • Free MPLAB IDE v8.43 or newer
  • Free MPLAB C Compiler for PIC32 with no code size limit
  • Example project files for Ethernet and USB applications
Program Memory
  • Integrated programmer - all you need is the included USB Cable
  • Program and verify a full 512k image in less than 9 seconds
Debug
  • Integrated debugger - all you need is the included USB cable
  • Full C source-based debugging in MPLAB IDE
Execute Code
  • PIC32 running at 80 MHz with 512K Flash, 128K RAM, 8 ch. DMA + 8 ch. DMA dedicated to Ethernet, CAN and USB
  • USB powered board
  • USB and Ethernet connectors, user switches, and LEDs
Customize
  • Expansion connector enables addition of Microchip's PIC32 expansion boards or create your own
  • Majority of MCU signals are present on the connector [Hirose: FX10A-120P/12-SV1(71)]




  • PIC32 Ethernet Starter Board
  • Standard A to mini B cable for debugger
  • Standard A to micro B cable for USB application development
  • Ethernet cable
The PIC32 Ethernet Starter Kit runs on Microsoft Windows 2000, Windows XP, Windows Vista, and Windows 7.

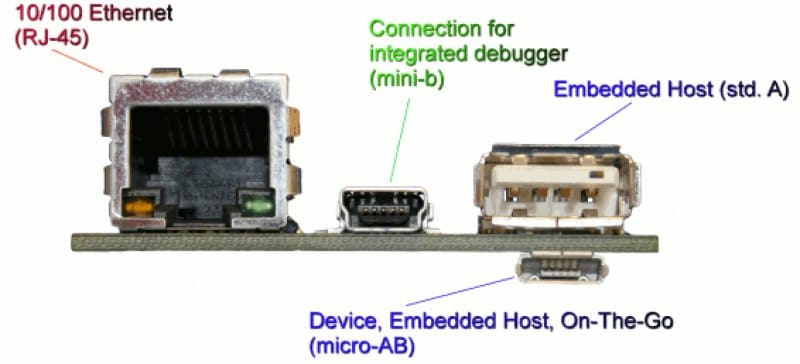

555-dm320004.jpg 556-dm320004-1.gif

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
PIC32 PHY Support Legacy Collaterals Download
PIC32 Ethernet Starter Kit User’s Guide User Guide Download
PIC32 ESK Core Timer Demo Software Libraries and Firmware Download
PIC32 ESK PWM/DMA Demo Software Libraries and Firmware Download
PIC32 ESK USB Device - CDC Basic Demo Software Libraries and Firmware Download
PIC32 ESK Port I/O Demo Software Libraries and Firmware Download
PIC32 ESK TCPIP Demo Software Libraries and Firmware Download
Help File for 128/196/256 bit AES Software for PIC32 Supporting Collateral Download
PIC32 USB to Ethernet Bridge Demo Code Examples Download
PIC32 CAN to Ethernet Bridge Demo Code Examples Download
AES ECB For PIC32 Help File User Guide Download
PIC32 ESK USB Host - Mass Storage Simple Demo Software Libraries and Firmware Download
PIC32 ESK USB Device - HID Mouse Demo Software Libraries and Firmware Download
PIC32 Ethernet Starter Kit Information Sheet Supporting Collateral Download
