Overview

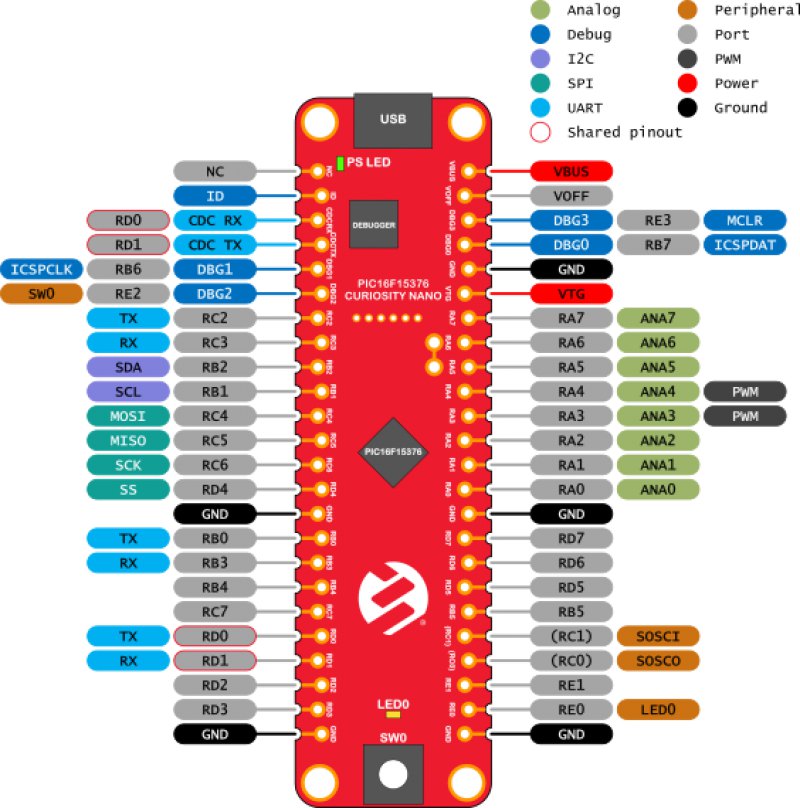

PIC16F15376 Curiosity Nano Evaluation Kit
- PIC16F15376 microcontroller
- One mechanical user switch
- One yellow user LED
- On-board debugger
- Board identification in Microchip MPLAB X
- One green power and status LED
- Programming and debugging
- Virtual COM port (CDC)
- One logic analyzer channel (DGI GPIO)
- USB powered
- Adjustable target voltage
- MIC5353 LDO regulator controlled by the on-board debugger
- 2.3 - 5.1 V output voltage (limited by USB input voltage)
- 500mA maximum output current
- PIC16F15376 Curiosity Nano evaluation board
- Two 100mil, 1x24 pin header strips
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC16F15376 Curiosity Nano Schematics | Board Design Files | Download | ||
| PIC16F15376 Curiosity Nano Hardware User Guide | User Guide | PDF | HTML | ||
| PIC16F15376 Curiosity Nano Design Documentation | Board Design Files | Download | ||
| Curiosity Nano Explorer Pinouts | Board Design Files | Download |
| Tool Details |
|---|
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
|
MPLAB XC Compilers are optimized C compilers for Microchip microcontrollers, offering high-performance code generation and integration with MPLAB Tools for VS Code and MPLAB X IDE.
|
| Tool Details |
|---|
The Microchip Curiosity Nano Base for Click boards™ evaluation kit is a hardware extension platform to ease the connection between Curiosity Nano kits and extension boards like the mikroBUS™ Click modules and Xplained Pro extension boards.
|
The Curiosity Nano Explorer lives up to its name by providing extensive on-board features that allow users to explore and experiment with the microcontroller peripherals of their Curiosity Nano development board. It also serves as an ideal platform to become familiar with Microchip's software offerings, including MCC Melody.
A wide selection of input and output options:
Solid support for serial communication:
Microchip’s complementary technologies:
Finally, if anything is missing on the Explorer, its functionality can be expanded via mikroBUS™, Grove or Qwiic® sockets. |
