477-dm163001
477-dm163001

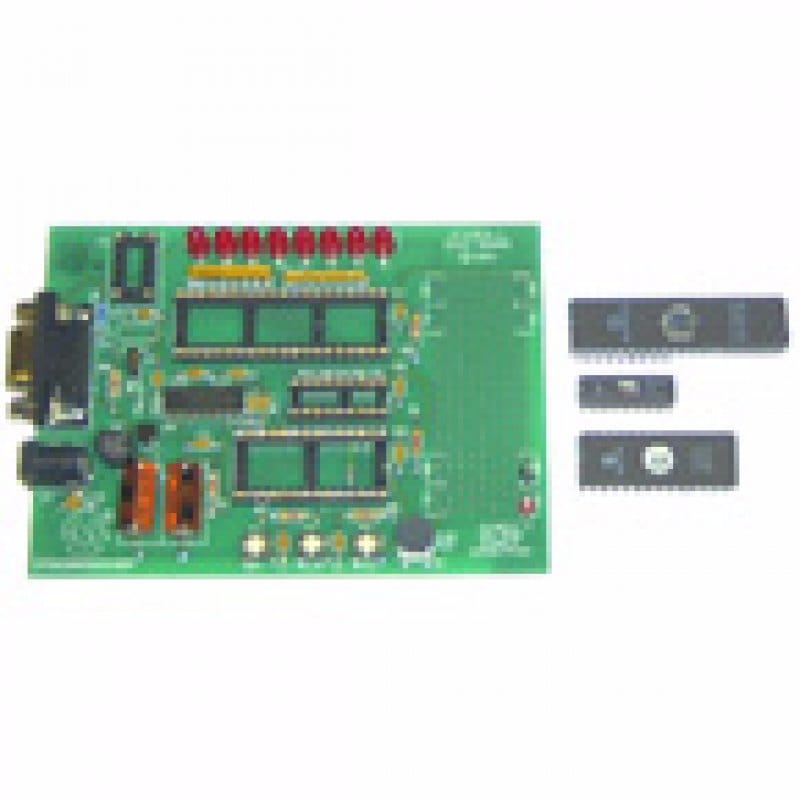

Part Number: DM163001

PICDEM 1

N/A

Overview

This kit demonstrates the capabilities of the PIC16C5X, PIC16C7XX, PIC16X8X, and PIC17C4X families. It can be used stand-alone with a programmed part, or with an emulator system, such as MPLAB ICE2000.Sample programs are provided to demonstrate the unique features of the supported devices.

Package Contents
This kit demonstrates the capabilities of the PIC16C5X, PIC16C7XX, PIC16X8X, and PIC17C4X families. It can be used stand-alone with a programmed part, or with an emulator system, such as MPLAB ICE2000.Sample programs are provided to demonstrate the unique features of the supported devices.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PICDEM™ 1 Support Disk Download 602f58f1-06e4-4069-9911-57daaa1e1576
PICDEM™ 1 User's Guide Download a849ecae-faaa-4fdd-97a5-a45d8709a11c

Application Notes

Title
Date
Document Category
Analog-to-Digital Conversion Using a PIC16C5X/PIC16F5X 21 May 2014 Link Application Notes
