Overview

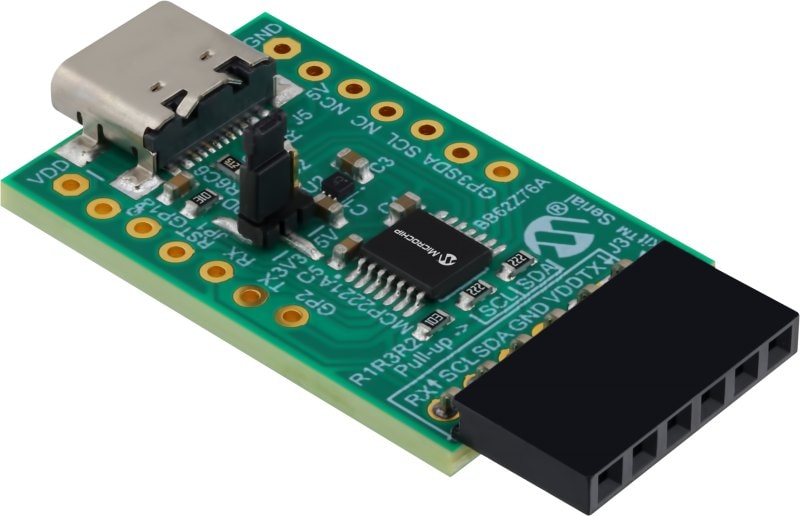

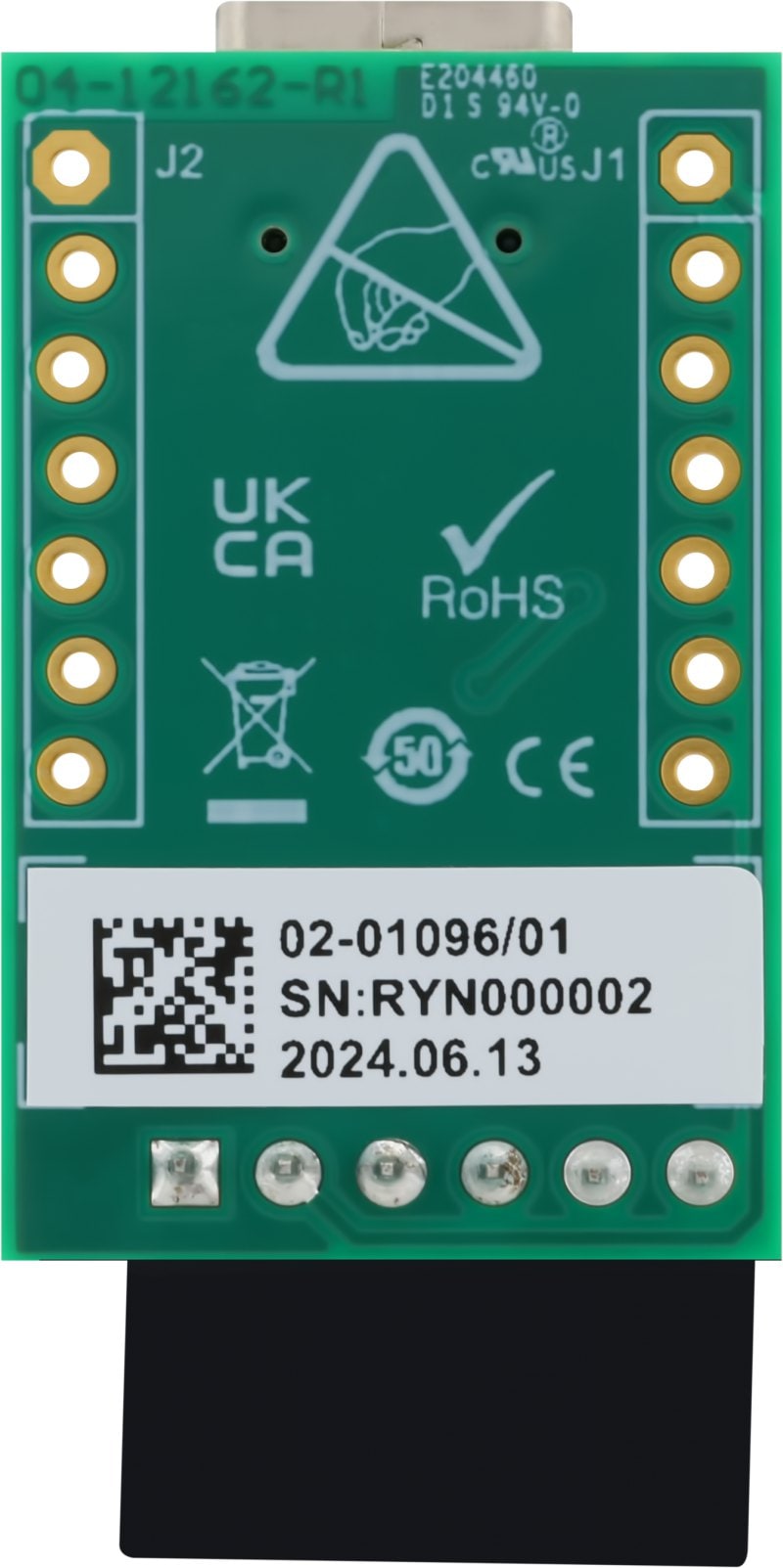

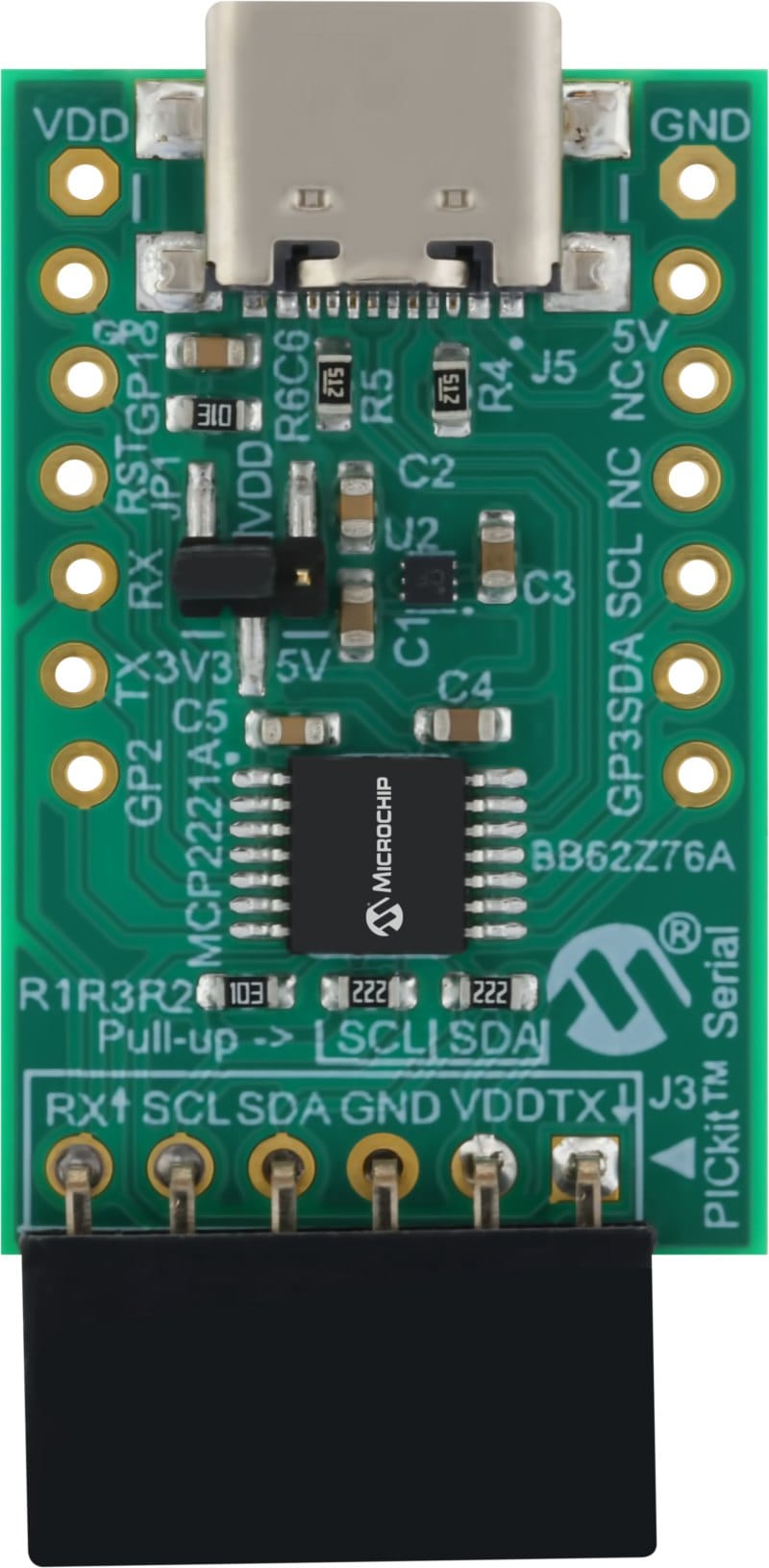

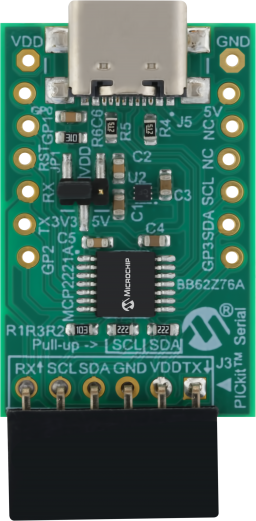

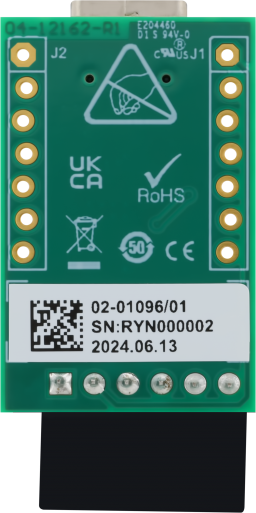

The MCP2221A USB-C Breakout Board serves as a development and evaluation platform specifically designed for the MCP2221A device. This board is constructed in a single Dual In-line Package (DIP) form factor, making it compact and easy to integrate into various prototyping and development environments. It provides a convenient interface for developers to access the features and functionalities of the MCP2221A, facilitating tasks such as USB-to-UART/I2C/SMBus protocol conversion, GPIO control, and ADC/DAC operations. The USB-C connector ensures modern connectivity standards, enhancing compatibility with contemporary devices and systems.
• UART Tx and Rx signals
• I2C™/SMBus clock and data lines (SCL and SDA)
• Four GP lines, configurable for GPIO, dedicated or alternate function operation
• User-selectable (by using a jumper) power supply of 3.3V or 5V (up to 500 mA)
• DIP form factor (600 mil spacing between two 7-pin headers)
• PICkit™ Serial Analyzer header — used for UART and I2C/SMBus communication only
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP2221A Breakout Board USB C (BB62Z76A) BOM | Board Design Files | Download | ||
| MCP2221A Breakout Board USB C (BB62Z76A) Schematic | Board Design Files | Download | ||
| MCP2221A Breakout Board USB C (BB62Z76A) Gerbers | Board Design Files | Download | ||
| MCP2221A Breakout Board USB C (BB62Z76A) China-RoHS-Declaration | Certifications | Download | ||
| MCP2221A Breakout Board USB C (BB62Z76A) UK-DoC | Certifications | Download | ||
| MCP2221A Breakout Board USB C (BB62Z76A) EU-DoC | Certifications | Download | ||
| MCP2221A Breakout Board USB C (BB62Z76A) EU-REACH-Statement | Certifications | Download | ||
| MCP2221 DLL (v2.2.1) | Software Libraries and Firmware | Download | ||
| MCP2200/MCP2221 Windows Driver and Installer | Software Libraries and Firmware | Download | ||
| MCP2221 I2C/SMBus Terminal (v2.0.1) | Software Libraries and Firmware | Download | ||
| MCP2221 Utility (v1.0.2) | Software Libraries and Firmware | Download | ||
| MCP2221 DLL | Software Libraries and Firmware | Download | ||
| MCP2221 DLL (v2.1.1) | Software Libraries and Firmware | Download | ||
| MCP2221 Command Line Interface (v1.0.2) | Software Libraries and Firmware | Download | ||
| MCP2221 Java Native Interface (v1.0) | Software Libraries and Firmware | Download | ||
| MCP2221 Terminal Android App (v2.0) | Software Libraries and Firmware | Download | ||
| MCP2221 Linux Kernel I2C Bus Driver | Software Libraries and Firmware | Download | ||
| MCP2200/MCP2221 Linux Driver Information | Software Libraries and Firmware | Download | ||
| MCP2200/MCP2221 Mac Driver Information | Software Libraries and Firmware | Download | ||
| MCP2221A USB-C Breakout Board User Guide | User Guides | Download |
