Overview
This product is no longer available for sale.

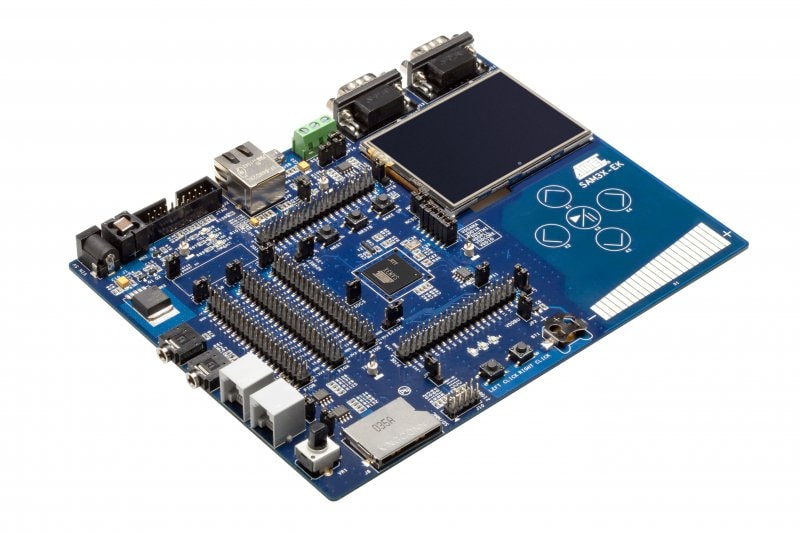

This kit lets designers quickly evaluate and develop code for applications running on SAM3X and SAM3A microcontrollers.
- SAM3X8H (LFBGA package)
- 12MHz crystal
- 32.768KHz crystal
- SDRAM
- NAND Flash
- Backup battery
- 2.8 inch TFT color LCD display with touch-panel and backlight
- UART port with level shifter IC
- USART port with level shifter IC
- Audio codec with input and output jacks: stereo headphone out and mono microphone in
- SD/MMC interface
- QTouch?? buttons: Up, Down, Left, Right, Valid and Slider
- Reset and wake-up buttons: NRST, NRSTB, FWUP
- User buttons: Left and Right
- High-speed USB Host/Device port
- JTAG/ICE port
- On-board power regulation with shutdown control (by the SAM3 chip)
- Three user LEDs
- Power LED
- User potentiometer connected to the ADC input
- ZigBee?? connector
- Two serial CAN 2.0B communication ports via two RJ12 connectors
- One Ethernet physical transceiver layer with RJ45 connector
- Five peripheral input/output extension connectors HE10 (PIOA, B, C, D, E)
