Part Number: ATREB231ED-EK
REB231ED-EK
- Evaluate the outstanding performance of AT86RF231 transceiver
Overview
This product is no longer available for sale.

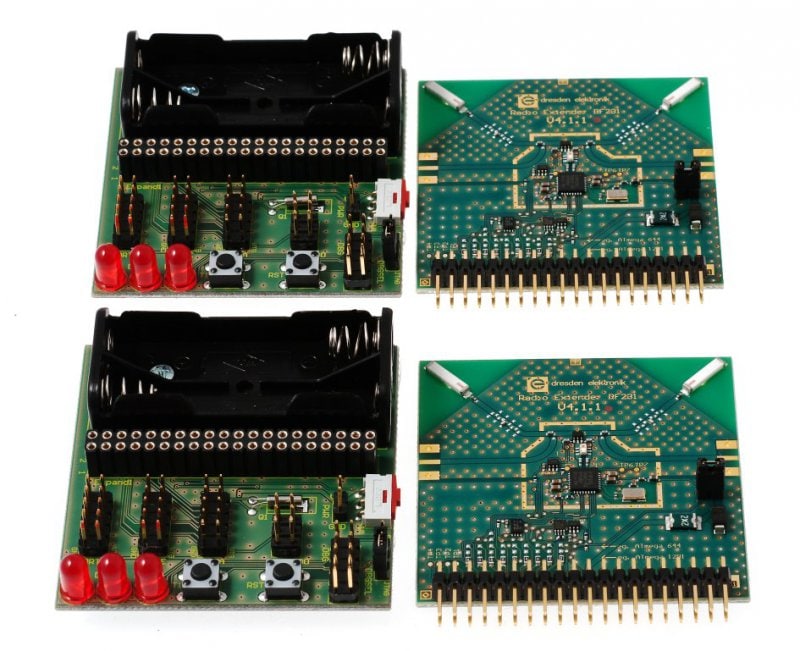

The REB231ED-EK demonstrates the unique performance and rich feature set of the 2.4GHz RF transceiver AT86RF231 combined with the leading edge ATxmega256A3 microcontroller. The REB231ED-EK contains two sets of Radio Extender Board(REB), Controller Base Board (REB-CBB) and RS232 cable to enable PC connectivity.
The REB is assembled with an AT86RF231 and two ceramic antennas, demonstrating the unrivaled hardware based Antenna Diversity feature to improve radio link robustness in adverse RF environments. The REB connected to the REB-CBB forms a fully functional, battery powered wireless node.
The kit is supported by BitCloud stack - a ZigBee PRO certified platform - and BitCloud Profile Suite - a certified testing and development solution for public application profiles like ZigBee Smart Energy and Home Automation. The kit is thus an ideal platform for design and prototyping of ZigBee-compliant wireless applications. The REB-CBB boards are also equipped with serial DataFlash, which enables seamless evaluation of over-the-air upgrade functionality provided by BitCloud.
Application Notes
|
Title
|
Date
|
Document Category
|
|
|---|---|---|---|
| AVR2054: SerialBootloader User Guide | 10 Dec 2016 | Link | Application Notes |
| AVR2040: REB231ED Evaluation Kit Quick Start Guide | 10 Dec 2016 | Link | Application Notes |
| AVR2043: REB231ED - Hardware User Manual | 10 Dec 2016 | Link | Application Notes |
| AVR2042: REB Controller Base Board - Hardware User Manual | 10 Dec 2016 | Link | Application Notes |
| AVR2021: AT86RF231 Antenna Diversity | 10 Dec 2016 | Link | Application Notes |
| AVR2023: AT86RF231 PCB reference design for antenna diversity | 10 Dec 2016 | Link | Application Notes |
