Overview
This product is no longer available for sale.

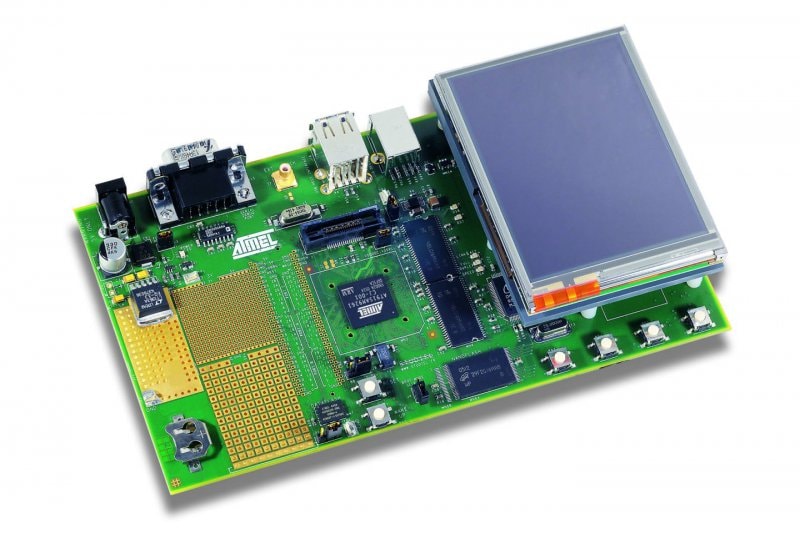

This kit lets designers quickly evaluate and develop code for applications running on the SAM9261.
- 64 Mbytes of SDRAM memory
- 256 Mbytes of NAND Flash memory
- One serial DataFlash??
- One USB device port interface
- Two USB host port interfaces
- One DBGU serial communication port
- JTAG/ICE debug interface
- One Ethernet 100-base TX with three status LEDs
- One Atmel AT73C213 Audio DAC
- One 3.5"" 1/4 VGA TFT LCD Module with TouchScreen and backlight
- One power LED and two general-purpose LEDs
- One DataFlash SD/MMC card slot
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| AT91-ISP.exe (v1.12 prev release) | Software Libraries and Firmware | Download | ||
| AT91-ISP.exe (v1.11 prev release) | Software Libraries and Firmware | Download | ||
| AT91SAM9261 CD-ROM Image | Miscellaneous | Download | ||
| AT91SAM9261-EK Design & Manufacturing Files - Bundle containing all the schematics, PCB and test files for all the kit versions. | Miscellaneous | Download | ||
| AT91SAM9261-EK Evaluation Board User Guide | User Guide | Download | ||
| Getting Started with the AT91SAM9261 Microcontroller | Application Notes | Link | Download | |
| AT91SAM9261-EK Design & Manufacturing Files Information - Kit versioning history and information, plus bundle contents description. | Miscellaneous | Download |
