Part Number: AT91SAM7X-EK

SAM7X-EK

User Guide: Download User Guides

Overview

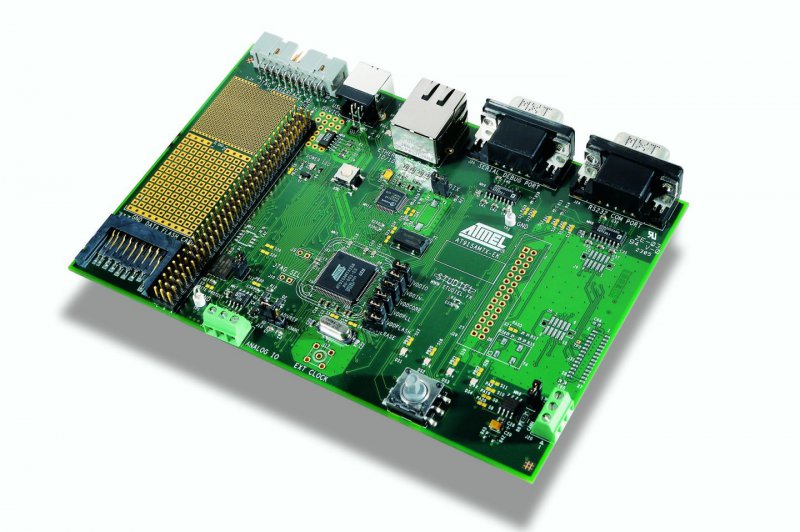

This kit lets designers quickly evaluate and develop code for applications running on an SAM7X microcontroller.
  • SAM7X256(100-pin LQFP Green package)
  • USB device port
  • DBGU serial communication port
  • RS232 serial communication port with RTS/CTS
  • JTAG/ICE debug interface connector
  • Serial CAN communication ports
  • MII Ethernet 100-base TX with auto MDIX capability
  • Buffered analog input and PWM output
  • Power LED and general-purpose LEDs
  • DataFlash?? card slot
  • Expansion connector
  • serial DataFlash
  • One footprint for Atmel Serial EEPROM (MN11)

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
AT91-ISP.exe (v1.12 prev release) Software Libraries and Firmware Download
AT91-ISP.exe (v1.11 prev release) Software Libraries and Firmware Download
AT91SAM7X-EK Design & Manufacturing Files - Bundle containing all the schematics, PCB and test files for all the kit versions. Miscellaneous Download
AT91SAM CAN Bootloader User Notes Application Notes Link Download
AT91SAM7X and AT91SAM7XC ARM Microcontrollers Brochures Download
AT91SAM7X-EK Design & Manufacturing Files Information - Kit versioning history and information, plus bundle contents description. Miscellaneous Download
IAR430 Quickstart Guide - HTML files User Guide Download
Getting Started with AT91SAM7X Microcontrollers Application Notes Link Download
AT91SAM7X-EK Evaluation Board for AT91SAM7X and AT91SAM7XC - The AT91SAM7X-EK evaluation kit enables evaluation capabilities and code development of applications running on the AT91SAM7X or the AT91SAM7XC microcontroller. User Guide Download
