Overview
This product is no longer available for sale.

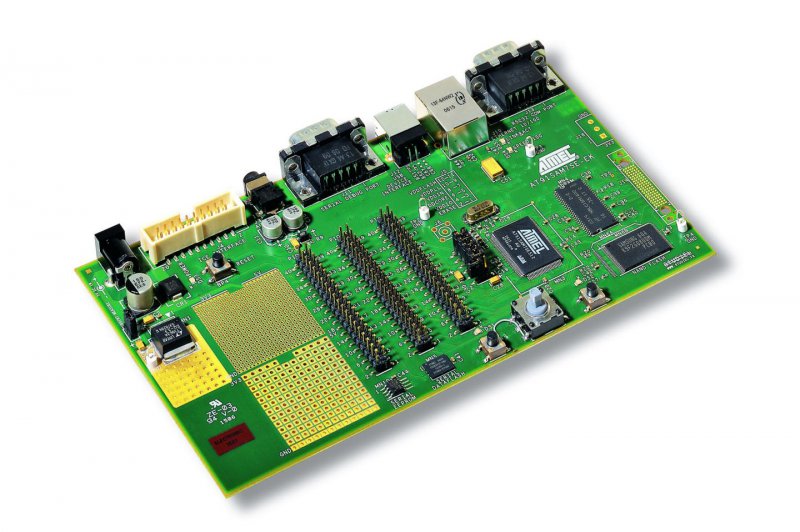

This kit lets designers quickly evaluate and develop code for applications running on an SAM7SE microcontroller.
- SAM7SE512 (128-pin LQFP package)
- 256 Mbytes of NAND Flash memory
- One USB device port interface
- One DBGU serial communication port
- One additional serial communication port with RTS/CTS handshake control
- One JTAG/ICE debug interface
- One Atmel® AT73C213 Stereo Audio DAC
- One power LED and two general-purpose LEDs
- One joystick and two user input pushbuttons
- One EBI expansion BGA-like footprint connector
- 32 Mbytes of SDRAM memory
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| AT91SAM7SE512_GHS.zip | Software Libraries and Firmware | Download | ||
| AT91-ISP.exe (v1.12 prev release) | Software Libraries and Firmware | Download | ||
| AT91-ISP.exe (v1.11 prev release) | Software Libraries and Firmware | Download | ||
| Getting Started with AT91SAM7SE Microcontrollers | Application Notes | Link | Download | |
| SAM7SE-EK Design & Manufacturing Files Information - Kit versioning history and information, plus bundle contents description. | Miscellaneous | Download | ||
| SAM7SE-EK Design & Manufacturing Files - Bundle containing all the schematics, PCB and test files for all the kit versions. | Miscellaneous | Download | ||
| AT91SAM7SE CD-ROM Image | Miscellaneous | Download | ||
| Connecting EBI Memory Daughter Boards to AT91SAM Evaluation Boards | Application Notes | Link | Download | |
| AT91SAM7SE-EK Evaluation Board User Guide | User Guide | Download |
