Overview
The MCP251xFD CAN FD Mother Board provides a simple, low-cost board to evaluate
the MCP2517FD, MCP2518FD and MCP251863 families of devices. The board features one mikroBUS™ socket to
accommodate the MCP2517FD, the MCP2518FD or the , MCP251863 Click board™.
The MCP251xFD CAN FD Mother Board together with the MCP2517FD or the MCP2518FD or the MCP251863 Click board™
can be used to implement a CAN FD node.
The MCP2517FD, MCP2518FD and MCP251863 click boards need to be purchased independently here: https://www.mikroe.com/mcp2517fd-click https://www.mikroe.com/mcp2518fd-click https://www.mikroe.com/mcp251863-click

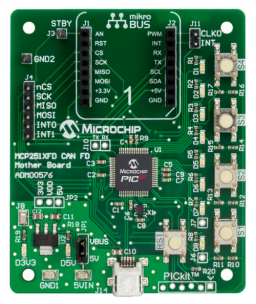

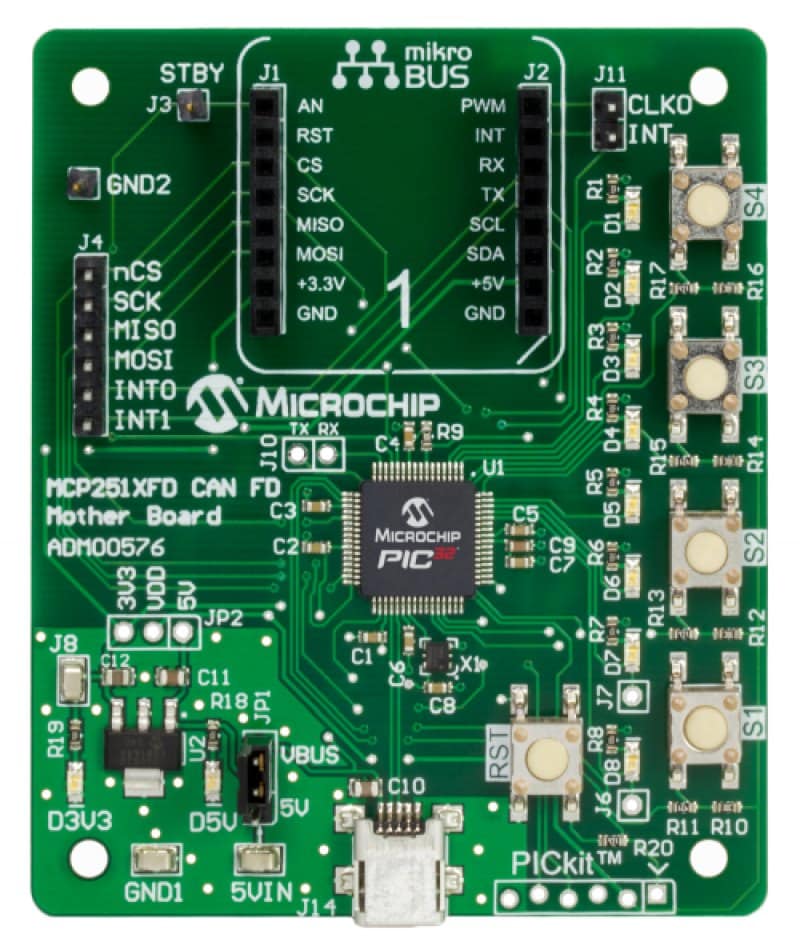

PIC32MX470F512H microcontroller
mikroBUS™ socket
Debug headers for monitoring the MCP251xFD I/O
DSC1121 8 MHz MEMS Clock Generator
USB connector to supply regulated +5V DC to the LDO and mikroBUS™ socket
Test loops to supply regulated +5V DC to the LDO and mikroBUS™ socket
Jumper to select between USB and test loop power source
3.3V LDO to supply microcontroller and mikroBUS™ socket, and power indicator LEDs
Push button switches for user-defined inputs
Eight indicator LEDs
Microcontroller Reset push button
Six-pin interface for the PICkit™ 3 Programmer/Debugger
