Part Number: ADM00276

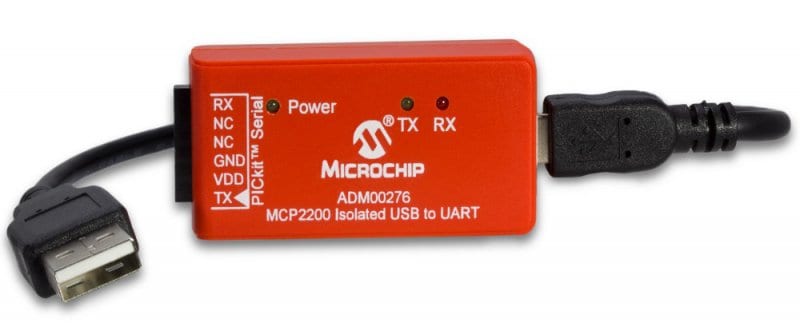

MCP2200 ISOLATED USB TO UART DEMO BOARD

User Guide: PDF
MCP2200 USB to UART with Isolation Demo Board User's Guide
View Purchasing Options
Contact Us

Overview

The MCP2200 USB to UART with Isolation Demo Board is a USB to UART development and evaluation board for the MCP2200 device. This board is powered from the host’s USB port. Two of the MCP2200 GPIO pins (GP6 and GP7) are connected to LEDs used to indicate the USB to UART traffic when the associated pins are configured as TxLED and RxLED pins, respectively. The isolated side is powered
externally with 3V to 5.5V. The board offers 3.75 kV AC of electrical isolation for power and UART signals.

Microchip Technology Inc. provides a software package to be used with this board that can be downloaded from Microchip’s web site. This PC software is used to evaluate/demonstrate the MCP2200 as a Virtual Com Port (VCP) device. This software also allows custom device configurations.

A DLL is included to allow the development of the custom configurations and software applications to control the GPIOs, that can be downloaded from the product/board web page.

  • Dedicated Tx LED (green) and Rx LED (red) to indicate the USB to UART traffic
  • Isolated power LED (green) that indicates the presence of power on the isolated side
  • Mini-USB connector
  • 6-pin PICkit™ Serial header with the UART (Tx and Rx) signals and power signals (VDD and GND)
  • Isolated transceiver powered externally from the isolated side with 3V to 5.5V that can be used as a voltage level translator
  • 1x MCP2200 USB to UART with Isolation Demo Board (ADM00276)
  • 1x Mini-USB Cable
  • 1x ABS Protective Case

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
MCP2200 Data Sheet Data Sheets Download
MCP2200 Isolated USB to UART Demo Board (ADM00276) BOM Board Design Files Download
MCP2200 Isolated USB to UART Demo Board (ADM00276) Gerbers Board Design Files Download
MCP2200 Isolated USB to UART Demo Board (ADM00276) Layouts Board Design Files Download
MCP2200 Isolated USB to UART Demo Board (ADM00276) Schematics Board Design Files Download
MCP2200 USB to UART with Isolation Demo Board User's Guide User Guide Download
MCP2200 User DLL 2014-10-10 Software Libraries and Firmware Download
MCP2200/MCP2221 Linux Driver Information Software Libraries and Firmware Download
MCP2200/MCP2221 Mac Driver Information Software Libraries and Firmware Download
MCP2200 Configuration Utility v1.3.1 Software Libraries and Firmware Download
MCP2200 Production Utility v1.1 Software Libraries and Firmware Download
MCP2200/MCP2221 Windows Driver and Installer Software Libraries and Firmware Download
