Overview

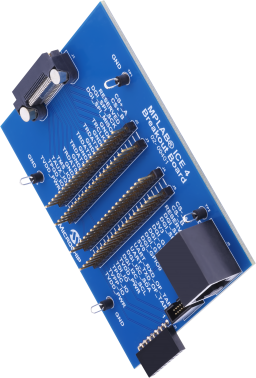

The MPLAB ICE 4 in-circuit emulator breakout board provides access to all target connection pins of the MPLAB ICE 4 in-circuit emulator for use in specialty connections, custom targets or CI/CD systems.
The connections can be made from the breakout headers with flying leads to targets or demo boards that have provisions for pin headers.
Use the breakout board to:
- Connect UART signals for use with CI/CD containers
- Access trace signals
- Connect to the Data Gateway Interface (DGI) serial peripherals, such a SPI and I2C
- Connect to power debugging current sense
- Monitor different debug signals such as:
- SWD
- JTAG
- ICSP
- AVR® MCU interfaces
Please see the user guide for MPLAB ICE 4 in-circuit emulator (DS-50003242) for a full description of emulator functionality.
One MPLAB ICE 4 in-circuit emulator breakout board
- MPLAB ICE 4 in-circuit emulator
- MPLAB X IDE version 6.00 or later
