Overview
The MM7150 Motion Module PICtail™/PICtail Plus Evaluation Board allows customers to easily develop motion applications using Microchip's 16- and 32-bit PIC® microcontrollers. The MM7150-PICtail combines motion sensors (accelerometer, magnetometer, and gyroscope) with a motion coprocessor with integrated sensor fusion. The MM7150-PICtail allows engineers to speed designs to market and reduce the risk of launching motion based embedded and internet-of-things (IOT) applications.
Related Products:
SSC7150 Motion Coprocessor Product Page
MM7150 Motion Module Product Page
- Easily develop motion monitoring applications
- Plugs directly into Explorer 16 board (Part Number: DM240001)
- Outputs raw sensor data, compensated sensor data, and positioning data
- Features
- SSC7150 Motion Coprocessor with integrated sensor fusion algorithms
- 3-axis accelerometer, 3-axis magnetometer, 3-axis gyroscope

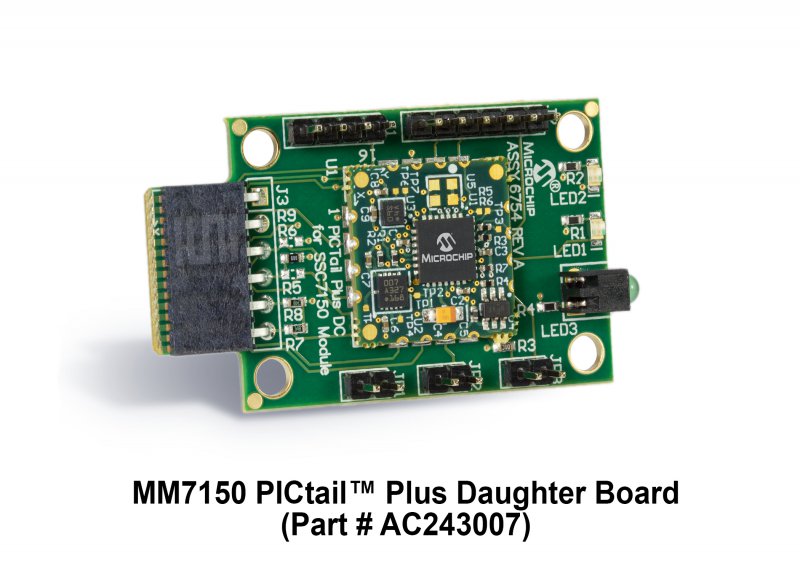

PCB Assy, MM7150 Motion Module PICtail™/PICtail Plus Evaluation Board
DS50002392A, Doc, Info Sheet
DS30000030 - Doc, Warranty/Registration
DS30000210 - Doc, Important Information
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MM7150 Motion Module PICtail Plus Evaluation Board (#AC243007) with Explorer 16 | User Guide | Download | ||
| MM7150 Motion Module - Data Sheet | Data Sheets | Download | ||
| Explorer 16 (PIC24FJ) Host Sample Codes for MM7150-PICTAIL, v1.3.3 | Code Examples | Download | ||
| MM7150 Motion Module | Data Sheets | Download | ||
| SSC7150 Motion Coprocessor - Data Sheet | Data Sheets | Download | ||
| Host API Design for MM7150 Motion Module | Application Notes | Link | Download |
