Microchip Technology Inc

MTCH6102

In Production

Microchip’s MTCH6102 is a turnkey projected capacitive touch controller that simplifies adding gestures to touch interface designs with industry-leading low power performance.  Utilize up to 15 channels to support taps, swipes, and scrolling on XY touch pads and touch screens.

The MTCH6102 allows designers to quickly and easily integrate projected capacitive touch into their cost sensitive, low power application.  The MTCH6102 provides developers with a flexible touch sensing solution to optimize common constraints of size, power and cost that are critical to applications such as wearable devices, remote controls, gaming devices and track pads.



    Features

        Touch Sensor Support

        • Up to 15 total channels
        • Sensor sizes up to 120mm (4.7”)
        • Individual channel tuning for optimal sensitivity
        • Works with printed circuit boards (PCB) sensors, film, glass, and flexible printed circuits (FPC) sensors.

        Cover layer support:

        • Plastic: up to 3 mm
        • Glass: up to 5 mm

        Touch Performance

        • >200 reports per second (configurable)
        • 12-bit resolution coordinate reporting

        Touch Features

        • Gesture detection and reporting
        • Self capacitance signal acquisition
        • Multiple built-in filtering options

        Power Management

        • Configurable sleep/idle framerates
        • Standby mode <500nA (typical)
        • Active mode <12uA possible

        Communication Interface

        • I2C (400kbps)
        • Both polling and interrupt schemes supported
        • Sync signal allows for host frame detection
        • Field upgradable over I2C

        Operating Conditions

        • 1.8V to 3.6V
        • -40ºC to +85ºC

        Package Types

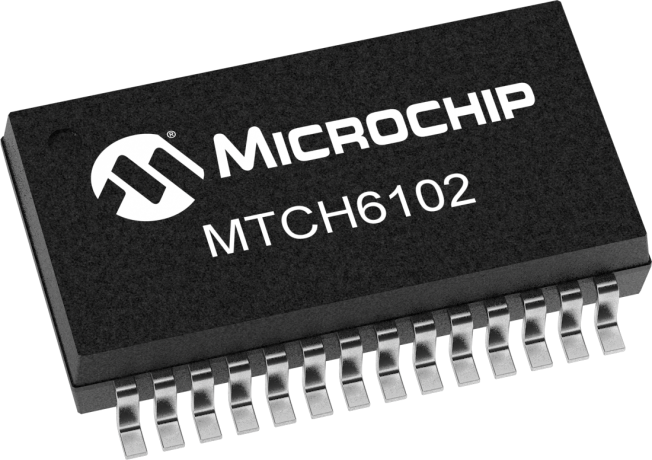

        • 28 Pin SSOP
        • 28 Pin UQFN

    Parameter Name
    Value
    Product Type
    Projected Capacitive Controller
    Input Channels
    15
    Measurement Principle
    Self Capacitance
    Report Rate (pps)
    200
    Number of Touches
    1
    Position Resolution
    12-Bit
    Interface
    I2C
    Features
    Gestures
    Voltage Range
    1.8V - 3.6V
    Documentation
    Data Sheets
    03/25/2014
    1102KB
      Brochures




    Brochures
    05/11/2015
    982KB
      Software




    Software
    09/18/2014
    8046KB
    Software
    05/02/2014
    9876KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MTCH6102-I/MV
    28
    UQFN
    -40C to +85C
    TUBE
    1.50
    1.38
    1.25
    1.15
    1.09
    MTCH6102-I/SS
    28
    SSOP
    -40C to +85C
    TUBE
    1.39
    1.27
    1.15
    1.06
    1.01
    MTCH6102T-I/MV
    28
    UQFN
    -40C to +85C
    T/R
    1.55
    1.42
    1.29
    1.18
    1.13
    MTCH6102T-I/SS
    28
    SSOP
    -40C to +85C
    T/R
    1.44
    1.32
    1.19
    1.10
    1.04

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • Low Power Projected Capacitive Touch Pad Development Kit ( DM160219 )

      Low

      Microchip's Low Power Projected Capacitive Touch Pad Development Kit enables designers to quickly integrate gestures and XY touch to their designs. The kit includes everything needed to create a rich user interface, including a USB connection to our GUI for customized solutions. Gestures and PCap touch are supported by MTCH6102, Microchip’s turnkey PCap touch controller.

    Similar Devices
    Product
    Product Type
    Price5K
    Notes
    Projected Capacitive Driver
    $1.09
    High-Voltage Driver w/Built-In Boost
    Projected Capacitive Controller
    $1.95
    Multi-Touch
    Projected Capacitive Controller
    $1.01
    Low Power
    Projected Capacitive Controller
    $2.59
    Large Sensor Support
    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    MTCH6102-I/SS
    0.229200
    0.489362
    28
    SSOP
    .209in
    Matte Tin
    e3
    MTCH6102T-I/SS
    0.229200
    0.333333
    28
    SSOP
    .209in
    Matte Tin
    e3
    MTCH6102-I/MV
    0.026100
    0.109890
    28
    UQFN
    4x4x0.55mm
    Matte Tin
    e3
    MTCH6102T-I/MV
    0.026100
    0.212121
    28
    UQFN
    4x4x0.55mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
