MCP41HV51
DATA SHEET
(06/30/2015)

DOWNLOAD

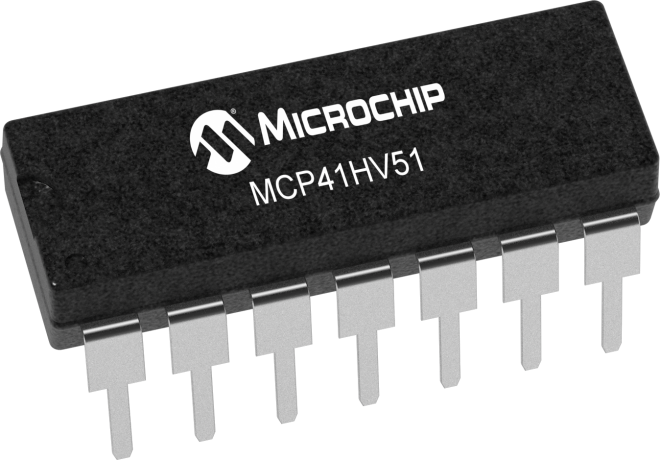

MCP41HV51

In Production

MCP41HV51 is a single-channel, high voltage digital potentiometer (Digipot) family that supports 10V ~36V or +/-5V to +/-18V power rails. It features 8-bit resolution with SPI interface. This family is available in TSSOP-14 and QFN-20 (5x5) packages and has 5kΩ, 10 kΩ, 50 kΩ, and 100 kΩ end-to-end resistance(RAB) options . All parts are guaranteed to operate over  –40°C to +125°C extended temperature range.

Microchip's MCP41HVX1 and MCP45HVX1 digital potentiometer (Digipot) families offer the widest operating voltage range that is currently available on the market.



    Features

        • High-Voltage Analog Support:
          • +36V Terminal Voltage Range (DGND = V–)
          • ±18V Terminal Voltage Range(DGND = V– + 18V)
        • Wide Operating Voltage:
          • Analog: 10V to 36V (specified performance)
          • Digital: 2.7V to 5.5V

                                              1.8V to 5.5V (DGND >= V- + 0.9V)

      • Resistor Network Resolution
        • 8-bit: 255 Resistors (256 Taps)
      • RAB Resistance Options:
        • 5kΩ
        • 10kΩ
        • 50kΩ
        • 100kΩ
      • High Terminal/Wiper Current (IW) Support:
        • 25 mA (for 5kΩ)
        • 12.5 mA (for 10 kΩ)
        • 6.5 mA (for 50 kΩ and 100 kΩ)
      • Zero-Scale to Full-Scale Wiper Operation
      • Low Wiper Resistance: 75Ω (Typical)
      • Low Tempco:
        • Absolute (Rheostat): 50 ppm Typical(0°C to +70°C)
        • Ratiometric (Potentiometer): 15 ppm Typical
      • SPI Serial Interface (10 MHz, Modes 0,0 and 1,1)
      • Resistor Network Terminal Disconnect Via:
        • Shutdown Pin (SHDN)
        • Terminal Control (TCON) Register
      • Write Latch (WLAT) Pin to control update of Volatile Wiper Register (such as Zero Crossing)
      • Power-On Rest / Brown-Out Reset for both:
        • Digital Supply (VL/DGND); 1.5V Typical
        • Analog Supply (V+ / V-); 3.5V Typical
      • Serial Interface Inactive Current (3 µA Typical)
      • 500 kHz Typical Bandwidth (-3 dB) Operation(5.0 kΩ Device)
      • Extended Temperature Range (-40°C to +125°C)
      • Package Types: TSSOP-14 and QFN-20 (5x5)
    Parameter Name
    Value
    Temp. Range (°C)
    -40 to +125
    Volatile / Non Volatile
    Volatile
    Number of Taps
    255
    Resistance (ohms) K
    5, 10, 50, 100
    # per Package
    1
    INL (Max)
    1
    DNL (Max)
    0.25
    Interface
    SPI
    Documentation
    Data Sheets
    06/30/2015
    2219KB
    Data Sheets
    06/06/2013
    11193KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    MCP41HV51-103E/MQ
    20
    QFN
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-103E/ST
    14
    TSSOP
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-104E/MQ
    20
    QFN
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-104E/ST
    14
    TSSOP
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-502E/MQ
    20
    QFN
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-502E/ST
    14
    TSSOP
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-503E/MQ
    20
    QFN
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51-503E/ST
    14
    TSSOP
    -40C to +125C
    TUBE
    1.51
    1.26
    1.14
    1.10
    1.09
    MCP41HV51T-103E/MQ
    20
    QFN
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-103E/ST
    14
    TSSOP
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-104E/MQ
    20
    QFN
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-104E/ST
    14
    TSSOP
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-502E/MQ
    20
    QFN
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-502E/ST
    14
    TSSOP
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-503E/MQ
    20
    QFN
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09

    MCP41HV51T-503E/ST
    14
    TSSOP
    -40C to +125C
    T/R
    1.51
    1.26
    1.14
    1.10
    1.09


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    MCP41HV51-503E/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51T-503E/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51-104E/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51T-104E/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51-502E/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51T-502E/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51-103E/ST
    0.060000
    0.125000
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51T-103E/ST
    0.060000
    0.246800
    14
    TSSOP
    4.4mm
    Matte Tin
    e3
    MCP41HV51-502E/MQ
    0.067130
    0.109589
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51T-502E/MQ
    0.067130
    0.166970
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51-103E/MQ
    0.067130
    0.109589
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51T-103E/MQ
    0.067130
    0.166970
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51-503E/MQ
    0.067130
    0.109589
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51-104E/MQ
    0.067130
    0.109589
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51T-503E/MQ
    0.067130
    0.166970
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    MCP41HV51T-104E/MQ
    0.067130
    0.166970
    20
    QFN
    5x5x0.9mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
