Microchip Technology Inc

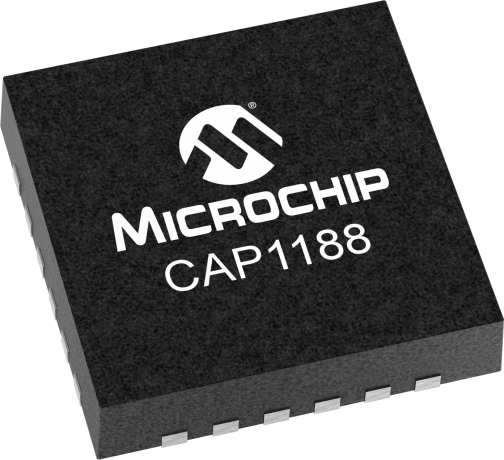

CAP1188

In Production

The CAP1188 is a turnkey capacitive touch controller providing a wide variety of  button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.

The CAP1188 also contains 8 LED drivers that offer full-on / off, variable rate blinking, dimness controls, and breathing. Each of the LED drivers may be linked to one of the sensor inputs to be actuated when a touch is detected. As well, each LED driver may be individually controlled via a host controller.



    Features

          Key Features
          • 8 Capacitive Touch Sensor Inputs
          • 8 LED Driver Outputs
          • Programmable sensitivity
          • Automatic recalibration
          • Individual thresholds for each button
          • Proximity Detection
          • Multiple Button Pattern Detection
          • Analog Filtering for System Noise Sources
          • Press and Hold feature for Volume-like Applications
          • Low Power Operation
          Communication
          • I²C™ and SMBus
            Package Type
            • 24-pin QFN
      Parameter Name
      Value
      Product Type
      Proximity/Keys/Slider
      Input Channels
      8
      Max Number of Keys
      8
      Proximity detection
      Yes
      Measurement Principle
      Self Capacitance
      Power Modes
      3
      Interface
      I2C/SPI
      I/O, LED Drivers
      8
      Voltage Range
      3.0V - 3.6V
      Documentation
      Data Sheets
      03/02/2015
      1085KB
        Application Notes



      AppNote
      02/28/2014
      150KB
      AppNote
      05/09/2013
      2254KB
      AppNote
      01/29/2015
      1594KB
      AppNote
      01/27/2017
      1549KB
      AppNote
      03/27/2014
      128KB
      AppNote
      10/16/2014
      205KB
      AppNote
      04/25/2014
      1496KB
      AppNote
      04/25/2014
      506KB
        Brochures




      Brochures
      12/07/2017
      5813KB
      Pricing & Samples
      All pricing shown in USD only.
      Part Number
      Leads
      Package Type
      Temp Range
      Packing
      1+
      26+
      100+
      1000+
      5000+
      Buy
      Sample
      CAP1188-1-CP-TR
      24
      VQFN
      -40C to +125C
      T/R
      1.12
      1.02
      0.93
      0.85
      0.81

      ** Device not available to purchase online. Please contact a sales office for pricing information.
      Open a microchipDIRECT account today!

      Development Tools
      • Demo & Eval Boards
      • CAP1188 Evaluation Board ( DM160222 )

        CAP1188

        The CAP1188 evaluation kit provides an easy platform for evaluating and developing a variety of capacitive touch sense applications using CAP11XX family. The GUI ( Graphical User Interface) allows the user to analyze data and configure the capacitive touch controller as well as the LED drivers.

        A second connector allows engineer to connect their own board with CAP1XXX controller and...

      Similar Devices
      Product
      Product Type
      Price5K
      Notes
      Proximity/Keys/Slider
      $0.55

      Proximity/Keys/Slider
      $0.53

      Proximity/Keys/Slider
      $0.67

      Proximity/Keys/Slider
      $0.74

      Proximity/Keys/Slider
      $0.74

      Proximity/Keys/Slider
      $0.81

      Proximity/Keys/Slider
      $0.87

      Proximity/Keys/Slider
      $1.48

      Proximity/Keys/Slider
      $0.36

      Proximity/Keys/Slider
      $0.43

      Proximity/Keys/Slider
      $0.45

      Proximity/Keys/Slider
      $0.49

      Proximity/Keys/Slider
      $0.59

      Proximity/Keys/Slider
      $0.64

      RoHS Information
      Part
      Number
      Device
      Weight
      Shipping
      Weight
      Lead
      Count
      Package
      Type
      Package
      Width
      Solder
      Composition
      JEDEC
      Indicator
      RoHS

      China
      EFUP
      CAP1188-1-CP-TR
      0.064500
      0.160000
      24
      VQFN
      4x4x0.9mm
      Matte Tin
      e3
      CAP1188-1-CP
      0.064500
      0.612245
      24
      VQFN
      4x4x0.9mm
      Matte Tin
      e3
      To see a complete listing of RoHS data for this device, please Click here
      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
