AT89C51CC03
DATA SHEET
(09/01/2008)

DOWNLOAD

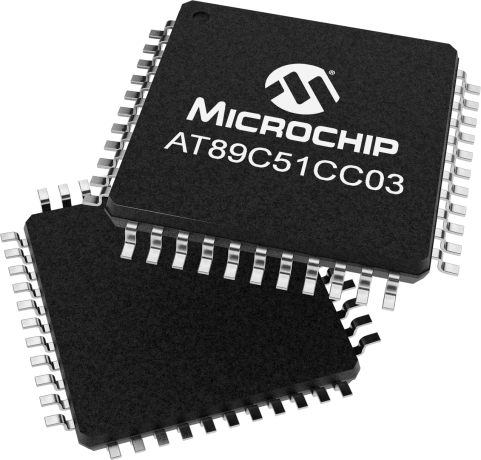

AT89C51CC03

In Production

Microchip 8-bit microcontroller with CAN controller and 64KB of flash. In X2 mode a maximum external clock rate of 20MHz reaches a 300ns cycle time.

Besides the full CAN controller, this devices provides 64KB of flash memory including ISP, 2KB boot flash memory, 2KB EEPROM, and 2048 bytes ERAM. Primary attention is paid to the reduction of electro-magnetic emissions.


    Parameter Name
    Value
    Program Memory Type
    Flash
    Program Memory (KB)
    64
    CPU Speed (MIPS)
    6.66666666666667
    RAM Bytes
    2
    Data EEPROM (bytes)
    2048
    Digital Communication Peripherals
    1-UART, 1-SPI,
    CAN
    1 None
    Temperature Range (C)
    0 to 0
    Operating Voltage Range (V)
    3 to 5.5
    Pin Count
    64
    Documentation
    Data Sheets
    09/01/2008
    2240KB
    Data Sheets
    03/01/2008
    314KB
    Data Sheets
    05/01/2006
    108KB
    Data Sheets
    03/01/2008
    232KB
      Application Notes



    AppNote
    06/01/2011
    128KB
    AppNote
    06/01/2011
    112KB
    AppNote
    06/01/2011
    205KB
    AppNote
    06/01/2011
    113KB
    AppNote
    11/01/2003
    194KB
    AppNote
    01/01/2000
    176KB
    AppNote
    05/01/2002
    371KB
    AppNote
    11/01/2002
    491KB
    AppNote
    12/01/2002
    180KB
    AppNote
    12/01/2002
    184KB
    AppNote
    12/01/2002
    449KB
    AppNote
    06/01/2005
    214KB
    AppNote
    12/01/2002
    103KB
    AppNote
    01/01/2001
    506KB
    AppNote
    12/01/2002
    103KB
    AppNote
    08/01/2003
    307KB
    AppNote
    08/01/2003
    318KB
    AppNote
    10/01/2003
    855KB
    AppNote
    06/01/2005
    183KB
    AppNote
    06/01/2004
    664KB
    AppNote
    06/01/2004
    190KB
    AppNote
    07/01/2004
    196KB
    AppNote
    06/01/2004
    215KB
    AppNote
    10/01/2004
    162KB
    AppNote
    07/01/2004
    246KB
    AppNote
    06/01/2005
    199KB
    AppNote
    04/01/2006
    540KB
    AppNote
    03/01/2007
    75KB
    AppNote
    11/01/2007
    239KB
    AppNote
    12/10/2016
    139KB
    AppNote
    07/28/2017
    936KB
    AppNote
    06/23/2017
    302KB
      Brochures



    Brochures
    12/10/2016
    3582KB
    Brochures
    07/01/2005
    1156KB
      Product Document



    Product Document
    06/01/2007
    18KB
    Product Document
    09/01/2007
    422KB
    Product Document
    11/01/2003
    145KB
    Product Document
    07/01/2004
    43KB
    Product Document
    07/01/2012
    86KB
    Product Document
    07/01/2012
    40KB
    Product Document
    10/01/2004
    32KB
    Product Document
    01/01/2005
    27KB
      User Guides



    User Guides
    07/01/2006
    1128KB
    User Guides
    01/01/2007
    1767KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    AT89C51CC03CA-RDTUM
    64
    LQFP
    -40C to +85C
    TRAY
    7.65
    7.02
    6.35
    5.84
    5.56
    AT89C51CC03CA-RLTUM
    44
    LQFP
    -40C to +85C
    TRAY
    7.65
    7.02
    6.35
    5.84
    5.56
    AT89C51CC03CA-S3SUM
    52
    PLCC
    -40C to +85C
    TUBE
    7.65
    7.02
    6.35
    5.84
    5.56
    AT89C51CC03CA-SLRUM
    44
    PLCC
    -40C to +85C
    T/R
    7.65
    7.02
    6.35
    5.84
    5.56
    AT89C51CC03CA-SLSUM
    44
    PLCC
    -40C to +85C
    TUBE
    7.65
    7.02
    6.35
    5.84
    5.56
    AT89C51CC03UA-RDTUM
    64
    LQFP
    -40C to +85C
    TRAY
    7.42
    6.81
    6.16
    5.67
    5.39
    AT89C51CC03UA-RLTUM
    44
    LQFP
    -40C to +85C
    TRAY
    7.65
    7.02
    6.35
    5.84
    5.56
    AT89C51CC03UA-S3SUM
    52
    PLCC
    -40C to +85C
    TUBE
    7.85
    7.20
    6.52
    6.00
    5.70
    AT89C51CC03UA-SLSUM
    44
    PLCC
    -40C to +85C
    TUBE
    7.65
    7.02
    6.35
    5.84
    5.56

    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    AT89C51CC03UA-SLSUM
    2.375500
    3.703704
    44
    PLCC
    16.6x16.6x4.4mm
    Matte Tin
    e3
    AT89C51CC03CA-SLRUM
    2.375500
    3.400000
    44
    PLCC
    16.6x16.6x4.4mm
    Matte Tin
    e3
    AT89C51CC03CA-SLSUM
    2.375500
    3.703704
    44
    PLCC
    16.6x16.6x4.4mm
    Matte Tin
    e3
    AT89C51CC03CA-RDTUM
    0.166700
    1.087500
    64
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    AT89C51CC03UA-RDTUM
    0.166700
    1.087500
    64
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    AT89C51CC03UA-RLTUM
    0.341100
    0.337500
    44
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    AT89C51CC03CA-RLTUM
    0.341100
    0.337500
    44
    LQFP
    10x10x1.4mm
    Matte Tin
    e3
    AT89C51CC03UA-S3SUM
    3.222200
    3.217391
    52
    PLCC
    19.1x19.1x4.4mm
    Matte Tin
    e3
    AT89C51CC03CA-S3SUM
    3.222200
    3.217391
    52
    PLCC
    19.1x19.1x4.4mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
