- Optimized for high-performance applications
- Efficient architecture with low CPU overhead
- Easily interfaces to most 16-bit embedded CPUs
- 1.8V to 3.3V variable voltage I/O accommodates wide range of I/O signaling without voltage level shifters
- Integrated PHY with HP Auto-MDIX support
- Integrated checksum offload engine helps reduce CPU load
- Low pin count and small body size package for small-form-factor system designs
Our Ethernet 10/100 controllers include an integrated Ethernet MAC and PHY with a high-performance SRAM-like client interface, as well as support for external MII and PCI interfaces. The simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors with a 16-bit external bus. The controllers are also available with variable I/O voltages and multiple package options.
View All Parametrics
| Product | Status | 5K Pricing | Automotive Grade | Ethernet Bandwidth | Interface | MAC | PHY | Fiber Support | TX/RX RAM Buffer(Bytes) | Interrupt Pin | IEEE 1588 | WOL | EEE | LEDs | Cable Diag | Op. Voltage (V) | Vdd I/O (V) | Temp Range Min.(° C) | Temp Range Max.(° C) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ENC28J60 | In Production | $2.03 | No | 10Mbps | SPI | Yes | Yes | No | 8K | 1 | No | No | No | 2 | No | 0 | 3.3 | -40 | 85 | 28/QFN, 28/SOIC, 28/SPDIP, 28/SSOP |
| ENC424J600 | In Production | $2.60 | No | 10/100Mbps | SPI, Parallel | Yes | Yes | No | 24K | 1 | No | No | No | 2 | No | 0 | 3.3 | -40 | 85 | 44/QFN, 44/TQFP |
| ENC624J600 | In Production | $2.81 | No | 10/100Mbps | SPI, Parallel | Yes | Yes | No | 24K | 1 | No | No | No | 2 | No | 0 | 3.3 | -40 | 85 | 64/TQFP |
| KSZ8441 | In Production | $3.97 | No | 10/100Mbps / FX | 8-bit or 16-bit | Yes | Yes | Yes | 12KB(RX) 6KB(TX) | 1 | Yes | Yes | Yes | 2 | Yes | 0 | 1.8/2.5/3.3 | -40 | 85 | 64/LQFP |
| KSZ8692 | Mature Product | $13.42 | No | 10/100Mbps | 8-bit or 16-bit | Yes | No | No | 8K | 0 | No | Yes | 0 | 0 | 3.3 | -40 | 85 | 400/PBGA | ||
| KSZ8695 | Mature Product | $9.68 | No | 10/100Mbps | 8/16/32-bit, MII | Yes | Yes | Yes | 8k | 0 | No | Yes | 6 | 0 | 3.3 | 0 | 70 | 289/PBGA | ||
| KSZ8841 | Mature Product Consider: KSZ8851 | $5.36 | No | 10/100Mbps | 8/16/32-bit | Yes | Yes | Yes | 8K | 1 | No | Yes | 4 | Yes | 0 | 3.3 | -40 | 85 | 128/LQFP, 128/PQFP | |

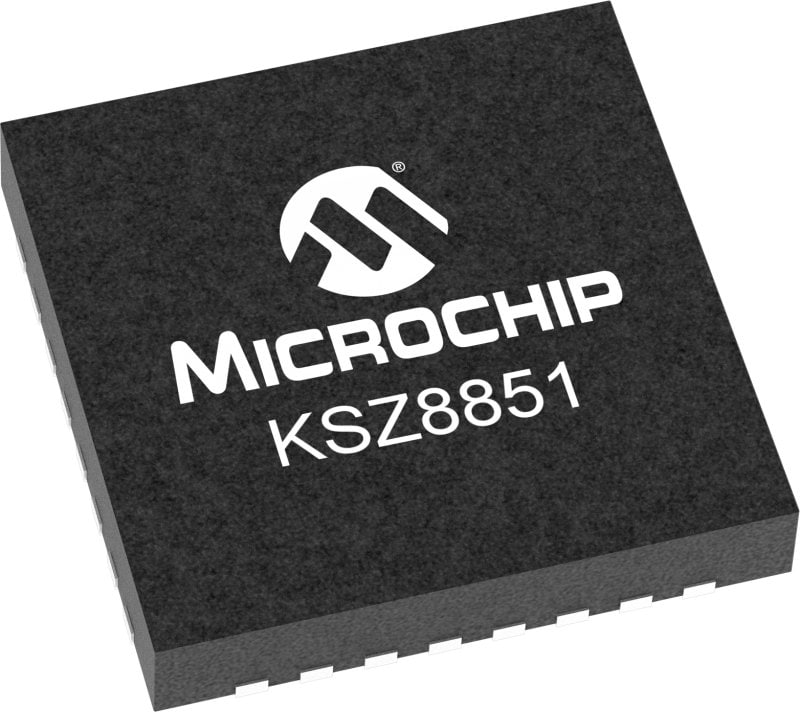

| KSZ8851 | In Production | $2.42 | Yes | 10/100Mbps | 8-/16-/32-bit or SPI | Yes | Yes | No | 12KB(RX) 6KB(TX) | 1 | No | Yes | No | 2 | Yes | 0 | 1.8/2.5/3.3 | -40 | 85 | 32/VQFN, 48/LQFP, 128/PQFP |
| KSZ9692 | Mature Product | $19.15 | No | 10/100/1000Mbps | 8/16-bit | Yes | No | No | 8K | 0 | No | Yes | 0 | No | 0 | 3.3 | -40 | 85 | 400/PBGA | |
| LAN89218 | In Production | $18.24 | Yes | 10/100Mbps | 32 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | -40 | 85 | 100/LQFP |
| LAN89730 | In Production Consider: LAN89530 | $5.87 | Yes | 10/100Mbps | HSIC | Yes | Yes | No | 28K | 1 | No | Yes | No | 3 | No | 0 | 3.3 | -40 | 85 | 56/VQFN |
| LAN9115 | Mature Product Consider: LAN9218 | $6.58 | No | 10/100Mbps | 16 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 100/LQFP |
| LAN9116 | Mature Product Consider: LAN9218 | $8.26 | No | 10/100Mbps | 16-bit or 32-bit | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 100/LQFP |
| LAN9117 | Mature Product Consider: LAN9218 | $8.43 | No | 10/100Mbps | 16 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 100/LQFP |
| LAN9118 | Mature Product Consider: LAN9218 | $13.48 | No | 10/100Mbps | 16-bit or 32-bit | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 100/LQFP |
| LAN91C100FD | Mature Product Consider: LAN9217, LAN9218 | Call for pricing | No | 10/100Mbps | 16-bit or 32-bit | Yes | Yes | No | External 128K | 1 | No | No | No | 0 | No | 0 | 5 | 0 | 70 | Please call for package information |
| LAN91C110 | Mature Product Consider: LAN9220 | $13.67 | No | 10/100Mbps | 16 bit PCMCIA and Host Bus | Yes | Yes | No | External 128K | 1 | No | No | No | 0 | No | 0 | 5 | 0 | 70 | Please call for package information |
| LAN91C111 | In Production Consider: LAN9218 | $16.55 | No | 10/100Mbps | 16-bit or 32-bit | Yes | Yes | No | 8K | 1 | No | No | No | 2 | No | 0 | 3.3 | -40 | 85 | 128/QFP, 128/TQFP |
| LAN91C96 | Mature Product Consider: LAN9217, LAN9218 | $11.53 | No | 10Mbps | 16 bit PCMCIA and Host Bus | Yes | Yes | No | 6K | 4 | No | No | No | 4 | No | 0 | 3.3 | 0 | 70 | 100/QFP, 100/TQFP |
| LAN9210 | In Production Consider: LAN9220 | $5.20 | No | 10/100Mbps | 16 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 56/VQFN |
| LAN9211 | In Production Consider: LAN9221 | $6.26 | No | 10/100Mbps | 16 bit | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 56/VQFN |
| LAN9215 | In Production Consider: LAN9217, LAN9218 | $7.42 | No | 10/100Mbps | 16 bit Host Bus, MII | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | -40 | 85 | 100/LQFP |
| LAN9217 | In Production | $10.67 | No | 10/100Mbps | 16 bit Host Bus, MII | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | 0 | 70 | 100/LQFP |
| LAN9218 | In Production | $13.37 | No | 10/100Mbps | 32 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | No | 3 | No | 0 | 3.3 | -40 | 85 | 100/LQFP |
| LAN9220 | In Production | $3.74 | No | 10/100Mbps | 16 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | No | 2 | No | 0 | 3.3 | 0 | 70 | 56/VQFN |
| LAN9221 | In Production | $4.67 | No | 10/100Mbps | 16 bit Host Bus | Yes | Yes | No | 16K | 1 | No | No | Yes | 2 | No | 0 | 3.3 | -40 | 85 | 56/VQFN |
| LAN9250 | In Production | $3.87 | No | 10/100Mbps | 8/16-bit Host Bus or SPI | Yes | Yes | Yes | 16K | 1 | Yes | Yes | Yes | 3 | Yes | 0 | 1.8/2.5/3.3 | -40 | 105 | 64/QFN, 64/TQFP |
| LAN9420 | In Production | $3.02 | No | 10/100Mbps | 32 bit PCI 3.0 | Yes | Yes | No | N/A | 1 | No | No | No | 3 | No | 0 | 3.3 | -40 | 85 | 128/TQFP |
Fast 100 Mbps Ethernet PICtail Plus Overview
Fast 100 Mbps Ethernet PICtail Plus Overview
The Fast 100 Mbps Ethernet PICtail™ Plus Daughter Board is an Ethernet demonstration board for evaluating Microchip Technologys ENC424J600 and ENC624J600 stand-alone 10/100 Ethernet controllers. The board is designed for flexibility and acts as an expansion board that can be plugged into Microchip's 8-, 16- and 32-bit microcontroller development boards.
