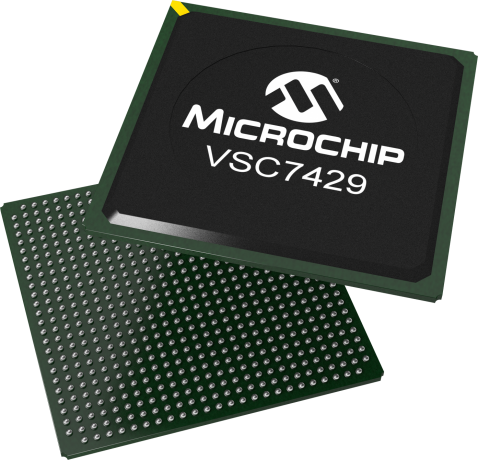

product primary image

VSC7429

26 Port Carrier Ethernet Switch with 12 Integ

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

VSC7429 Caracal-2 is the industry's first fully integrated 26-port Ethernet switch with 12 Gigabit Ethernet (GE) copper PHYs in a single package. In conjunction with Microsemi's 12-port PHY, 24/26-port switches can be designed using only two ICs. VSC7429 is based on Virtualized Service Aware Architecture (ViSAA), a silicon implementation that offers an unmatched level of Service Edge and Carrier Ethernet (CE) Networking features. ViSAA achieves wirespeed performance for even the most feature-rich CE services. VSC7429 is intended for Telecom and CE applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 network timing and Synchronous Ethernet (SyncE). VSC7429 uses VeriTime, Microsemi's patent-pending timing technology that delivers the industry's most accurate IEEE 1588 network timing and synchronization implementation. The device supports combinations of up to 26 SGMII ports consisting of 12G Cu PHYs, 12 SGMII interfaces, two of which support 1G/2.5G, and up to three QSGMII ports. One of the SGMII ports can be dedicated to the CPU for packet insertion and extraction. VSC7429 meets the IEEE 802.3az Energy Efficient Ethernet requirements for green energy efficient Ethernet through Microsemi's ActiPHY and PerfectReach energy efficient modes. A powerful embedded 416MHz MIPS processor 32-bit CPU with DDR2 external memory and DMA-based frame extraction and insertion supports timing over packet, Ethernet OAM, and performance monitoring.VSC7429 is an excellent choice for Mobile backhaul and Microwave backhaul applications, and for service provider demarcation points in Edge and Access devices. A comprehensive application programming interface (API) and software package are provided for CE applications. The software package integrates easily with third-party software, preserving existing software investments while adding new, enhanced carrier functionality.

Additional Features
    • VSC6816: SMBStaX Linux Application Software Package for Managed Enterprise Switches
    • VSC6817: IStaX Linux Application Software Package for Managed Ethernet Switches
    • VSC6819: WebStaX Linux Application Software Package for Managed Enterprise Switches
    • GE PHYs
    • 10GE PHYs
    • Ethernet Software
    • Integrated Cu PHYs
    • IEEE 1588 and Synchronous Ethernet network timing
    • Supports IEEE802.3az and green energy efficiency modes with ActiPHY™ and PerfectReach™
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000/2500Mbps
MAC
26
Interrupt Pin
Yes
LEDs
128
Op. Voltage (V)
1
Interface
SGMII, QSGMII 1000Base-T (12)
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
125
Automotive
No
Fiber Support
100FX, 1000X
Vdd I/O (V)
1.0/1.2/2.5
LinkMD Cable Diag
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.53
10/100Mbps
MII/RMII
$3.76
10/100Mbps
MII/RMII/RGMII
$5.26
10/100Mbps
MII/RMII/RGMII
$8.26
10/100Mbps
MII/RMII/RGMII/SGMII
$6.62
10/100Mbps
MII/RMII/RGMII/GMII
$6.44
10/100Mbps
MII/RMII/RGMII
$3.25
10/100Mbps
MII/RMII/RGMII
$3.09
10/100Mbps
MII/RMII/RGMII/GMII
$3.20
10/100Mbps
Host Bus/PCI
$7.73
10/100Mbps
Host Bus
$6.71
10/100Mbps
Host Bus
$10.82
10/100Mbps
MII/RMII
$2.65
10/100Mbps
MII(2)/RMII(2)
$3.61
10/100Mbps
MII/RMII/MII(2)
$2.98
10/100Mbps
MII/RMII
$5.05
10/100Mbps
MII/RMII
$3.09
10/100Mbps
MII/RMII
$3.92
10/100Mbps
MII/RMII
$4.28
10/100Mbps
MII
$17.16
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$10.37
10/100/1000Mbps
MII/RMII/RGMII
$5.64
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$8.67
10/100/1000Mbps
MII/RMII/RGMII
$4.96
10/100/1000Mbps
MII/RMII/RGMII/GMII
$6.32
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$6.39
10/100Mbps
MII/RMII/Turbo MII
$3.97
10/100Mbps
MII(2)/RMII(2)/Turbo MII(2)
$4.82
10/100Mbps
Host Bus
$7.36
10/100Mbps
Host Bus
$8.40
10/100Mbps
MII
$6.50
10/100Mbps
Host Bus/SPI/SQI
$6.75
10/100Mbps
MII/RMII/Turbo MII
$3.64
10/100Mbps
RMII
$3.41
10/100Mbps
MII/RMII/Turbo MII
$4.20
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$23.04
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$33.35
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$24.48
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$28.15
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$35.20
10/100/1000/2500Mbps
SGMII 1000Base-T (5)
$27.84
10/100/1000Mbps
SGMII 1000Base-T (8)
$28.90
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$33.23
10/100/1000Mbps
QSGMII 1000Base-T (12)
$38.22
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$41.54
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$28.35
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$68.56
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$36.08
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$46.39
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$59.28
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$69.07
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$84.54
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$31.44
10/100/1000/2500Mbps
SGMII, QSGMII
$66.40
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$71.56
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$81.87
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$87.02
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$115.98
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$154.64
10/100/1000/2500Mbps
SGMII 1000Base-T (4)
$9.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$12.37
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$15.46
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$18.56

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC7429XJG-02
3.500900
8.250000
672
HSBGA
27x27mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
