Status: Not Recommended for new designs

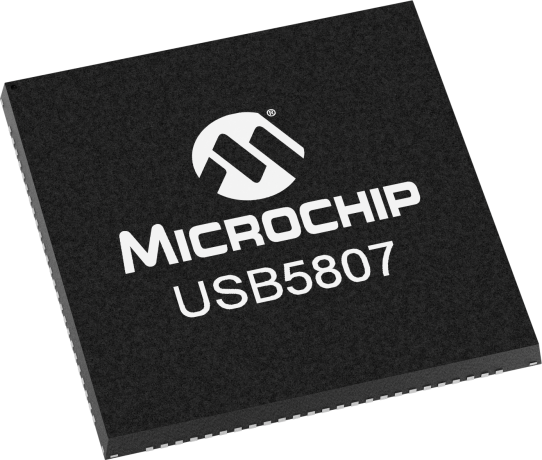

Microchip’s USB5807 SmartHub is a 7 port, SuperSpeed (SS), low power, configurable USB3.1 Gen1 hub and fully compliant with USB-IF's USB 3.1 Gen1 specification (TID330000064). The USB5807 also supports Hi-Speed (HS), Full Speed (FS) and Low Speed (LS) USB signaling, offering complete coverage of all defined USB operating speeds. The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.
The USB5807 is also a SmartHub which is defined as a USB hub that integrates system levels functions typically associated with a separate MCU or processor. The USB5807 SmartHub enables a downstream device to take control of the host system by swapping roles and becoming the host port. The SmartHub can also switch between two different hosts if required. This role changing technology is called FlexConnect and can be initiated through hardware or software commands.
The hub also can expand beyond seven ports through
PortSplitting which allows for embedded applications to only use the
interface needed for internal, non-removable USB connections.
MPLAB® Connect Configurator, Microchip’s proprietary software utility, can be used to program On-chip One Time Programmable (OTP) ROM which stores required register settings to ensure the desired start up configuration at power on. All LED, GPIOs and port control signal pins are under firmware control, allowing for maximum operational flexibility. However, for even more simplicity, the USB5807 can be configured through a series of external low-cost resistor bootstraps. A handful of bootstap pins are available on the USB5807 to enable standard configurations for GPIOs and downstream ports. No OTP programming required..
Please consider this device USB5807C
The EVB-USB5807 is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the USB5807,a 7-Port SS/HS USB Smart Hub on a 4-layer RoHS-compliant Printed Circuit Board (PCB). This will allow the user to gain an understanding of the product and accelerate the integration of the USB5807 into the user’s design. The EVB-USB5807 is...
