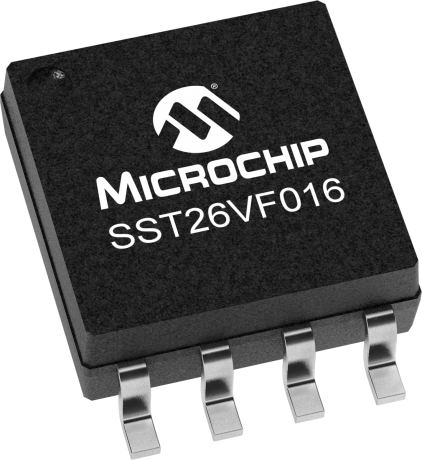

SST26VF016

Status: Not Recommended for new designs

Features:

  • Serial Interface Architecture - Nibble-wide multiplexed I/O’s with SPI-like serial command structure: Mode 0 and Mode 3 - Single-bit, SPI backwards compatible: Read, Fast Read, and JEDEC ID Readit/s sustained data rate
  • Continuous Linear Burst Modes – 8/16/32/64 Byte linear burst with wrap-around
  • Low Power Consumption: – Active Read current: 12 mA (typical @ 80 MHz) – Standby Current: 8 µA (typical)
  • Fast Erase and Byte-Program: – Chip-Erase time: 35 ms (typical) – Sector-/Block-Erase time: 18 ms (typical)
  • Page-Program – 256 Bytes per page – Fast Page Program time in 1 ms (typical)
  • Flexible Erase Capability – Uniform 4 KByte sectors – Four 8 KByte top and bottom parameter overlay blocks – Two 32 KByte top and bottom overlay blocks – Uniform 64 KByte overlay blocks - 62 Blocks
  • Software Write Protection – Individual Block-Locking - 64 KByte blocks, two 32 KByte blocks, and eight 8
  • Packages Available – 8-contact WSON (6mm x 5mm) – 8-lead SOIC (200 mil)
  • All devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST26VF016 Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. Operating at frequencies reaching 80 MHz, the SST26VF016 / SST26VF032 enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and small footprint make it the ideal choice for mobile handsets, Bluetooth® headsets, optical disk drives, GPS applications and other portable electronic products. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.

Please consider this device SST26VF016B

Additional Features
  • Serial Interface Architecture- Nibble-wide multiplexed I/O’s with SPI-like serial command structure: Mode 0 and Mode 3- Single-bit, SPI backwards compatible: Read, Fast Read, and JEDEC ID Readit/s sustained data rate
  • Continuous Linear Burst Modes– 8/16/32/64 Byte linear burst with wrap-around
  • Low Power Consumption:– Active Read current: 12 mA (typical @ 80 MHz)– Standby Current: 8 µA (typical)
  • Fast Erase and Byte-Program:– Chip-Erase time: 35 ms (typical)– Sector-/Block-Erase time: 18 ms (typical)
  • Page-Program– 256 Bytes per page– Fast Page Program time in 1 ms (typical)
  • Flexible Erase Capability– Uniform 4 KByte sectors– Four 8 KByte top and bottom parameter overlay blocks– Two 32 KByte top and bottom overlay blocks– Uniform 64 KByte overlay blocks - 62 Blocks
  • Software Write Protection– Individual Block-Locking- 64 KByte blocks, two 32 KByte blocks, and eight 8
  • Packages Available– 8-contact WSON (6mm x 5mm)– 8-lead SOIC (200 mil)
  • All devices are RoHS compliant
Parametrics
Name
Value
Density
16 Mbit
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
80 MHz
Page Size (bytes)
256
Temp Range (°C)
-40°C to +85°C
Endurance
100,000
Data Retention (Years)
100
Bus Modes
SPI,SQI

Documents

Jump to:

Brochures

12/19/2017
3698KB
06/24/2015
740KB
06/24/2015
3370KB

Code Examples

Board Design Files

06/23/2015
4KB
06/23/2015
4KB

MISC

06/23/2015
34KB
06/24/2015
38KB
06/24/2015
77KB
06/24/2015
66KB

Development Environment

  • Programmers
  • Code Examples
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
16M
50 MHz
SOIJ-8, TDFN-S-8
$1.10
16000K
80 MHz
SOIJ-8, TDFN-S-8
$0.97

104 MHz
SOIC-8, SOIJ-8, TDFN-S-8
$0.96

104 MHz
SOIC-8
$1.20
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$0.99
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$1.04
