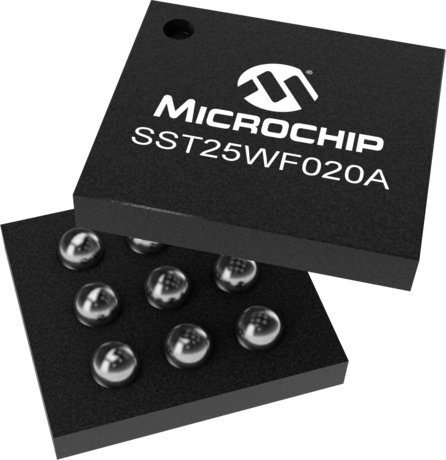

product primary image

SST25WF020A

2Mb 1.65-1.95V SPI Serial Flash

Status: In Production

Features:

  • Single Voltage Read and Write Operations - 1.65-1.95V
  • Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3
  • High Speed Clock Frequency - 40MHz
  • Superior Reliability - Endurance: 100,000 Cycles - Greater than 20 years Data Retention
  • Ultra-Low Power Consumption: - Active Read Current: 4 mA (typical) - Standby Current: 10 µA (typical) - Power-down Mode Standby Current: 4 µA (typical)
  • Flexible Erase Capability - Uniform 4 KByte sectors - Uniform 64 KByte overlay blocks
  • Page Program Mode - 256 Bytes/Page
  • Fast Erase and Page-Program: - Chip-Erase Time: 300 ms (typical) - Sector-Erase Time: 40 ms (typical) - Block-Erase Time: 80 ms (typical) - Page-Program Time: 3 ms/ 256 bytes (typical)
  • End-of-Write Detection - Software polling the BUSY bit in Status Register
  • Hold Pin (HOLD#) - Suspend a serial sequence without deselecting the device
  • Write Protection (WP#) - Enables/Disables the Lock-Down function of the status register
  • Software Write Protection - Write protection through Block-Protection bits in status register
  • Temperature Range - Industrial: -40°C to +85°C
  • Packages Available - 8-lead SOIC (150 mils) - 8-contact USON (2mm x 3mm) - 8-contact TDFN-S (5mm x 6mm)
  • All devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

SST25WF020A is a member of the Serial Flash 25 Series family and feature a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. SPI serial flash memory is manufactured with proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. This Serial Flash significantly improve performance and reliability, while lowering power consumption. The device writes (Program or Erase) with a single power supply of 1.65-1.95V. The total energy consumed is a function of the applied voltage, current, and time of application. Since for any given voltage range, the SuperFlash technology uses less current to program and has a shorter erase time, the total energy consumed during any Erase or Program operation is less than alternative flash memory technologies. SST25WF020A is offered in 8-lead SOIC, 8-contact TDFN (5mm x 6mm) and 8-contact USON (2mm x 3mm) packages.

Additional Features
    • Single Voltage Read and Write Operations - 1.65-1.95V
    • Serial Interface Architecture - SPI Compatible: Mode 0 and Mode 3
    • High Speed Clock Frequency - 40MHz
    • Superior Reliability - Endurance: 100,000 Cycles - Greater than 20 years Data Retention
    • Ultra-Low Power Consumption: - Active Read Current: 4 mA (typical) - Standby Current: 10 µA (typical) - Power-down Mode Standby Current: 4 µA (typical)
    • Flexible Erase Capability - Uniform 4 KByte sectors - Uniform 64 KByte overlay blocks
    • Page Program Mode - 256 Bytes/Page
    • Fast Erase and Page-Program: - Chip-Erase Time: 300 ms (typical) - Sector-Erase Time: 40 ms (typical) - Block-Erase Time: 80 ms (typical) - Page-Program Time: 3 ms/ 256 bytes (typical)
    • End-of-Write Detection - Software polling the BUSY bit in Status Register
    • Hold Pin (HOLD#) - Suspend a serial sequence without deselecting the device
    • Write Protection (WP#) - Enables/Disables the Lock-Down function of the status register
    • Software Write Protection - Write protection through Block-Protection bits in status register
    • Temperature Range - Industrial: -40°C to +85°C
    • Packages Available - 8-lead SOIC (150 mils) - 8-contact USON (2mm x 3mm) - 8-contact TDFN-S (5mm x 6mm)
    • All devices are RoHS compliant
Parametrics
Name
Value
Density
2 Mbit
Op. Volt Range (V)
1.65 to 1.95
Max. Clock Freq.
40 MHz
Page Size (bytes)
256
Temp Range (°C)
-40°C to +85°C
Endurance
100,000
Data Retention (Years)
20
Bus Modes
SPI

Documents

Jump to:

Data Sheets

Brochures

12/19/2017
3698KB

Code Examples

Software Libraries/Firmware

06/24/2015
30KB
06/23/2015
46KB
06/23/2015
60KB

Development Environment

  • Code Examples

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
2000K
33 MHz
SOIC-8, TDFN-S-8
$0.44
2 Mbit
80 MHz
SOIC-8, TDFN-S-8, USON-8
$0.50

20 MHz
SOIC-8, TDFN-S-8
$0.44
2000K
80 MHz
SOIC-8, TDFN-S-8, USON-8
$0.53
2 Mbit
40 MHz
SOIC-8, TDFN-S-8, UDFN-8, WLCSP-9
$0.58

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST25WF020AT-40I/CS
0.064667
9
WLCSP
Varies
SAC
e1
SST25WF020A-40I/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
SST25WF020AT-40I/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
SST25WF020A-40I/MF
0.073800
0.163265
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
SST25WF020AT-40I/MF
0.073800
0.200000
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
SST25WF020AT-40I/NP
0.006200
0.150000
8
UDFN
2x3x0.55mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
