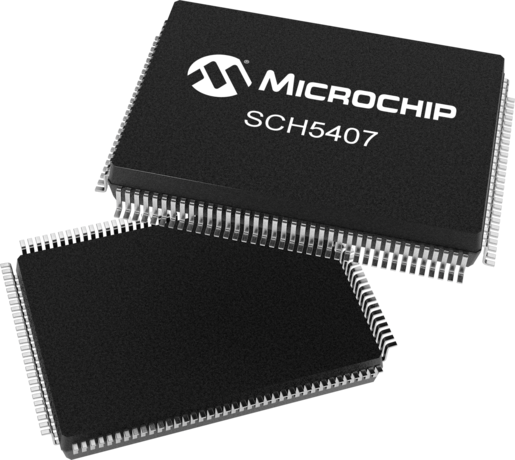

product primary image

SCH5407

Super I/O Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SCH5407 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface. It includes Hardware Monitoring capabilities, enhanced Security features, Power Control logic and Motherboard Glue logic.

There are five analog inputs for monitoring external voltages, as well as internal monitoring of the SIO’s VCC (emulated power well), VTR (signal power well), and VBAT power supplies. The Motherboard Glue logic includes various power management and system logic including generation of nRSMRST, SMBus isolation buffers, and buffered PCI (Peripheral Component Interconnect) reset outputs.

Complete legacy Super I/O functionality including a floppy disk controller with SMSC's true CMOS 765B core and enhanced digital data separator are incorporated. The true CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures and is software and register compatible with SMSC's proprietary 82077AA core.

Family parts
SCH5407-NW

Additional Features
  • 8042 Keyboard Controller
  • 128 QFP Packaging
  • 30 GPIO Pins
  • State Machine Fan Control Engine
  • SMBus Interface
  • IEEE 1284, EPP, ECP Compatible Parallel Port
  • One IrDA 1.0 Infrared Port
  • One 16C550A UART-compatible serial port
  • 3 PWM Outputs
  • 3 fan tachometer inputs
  • Hardware monitoring capability: temperature, voltage, and fan speed monitoring, can alert the system to out-of-limit conditions and automatically control the speeds of multiple fans.
  • Monitor two external temperatures via thermal diode inputs and an internal sensor (measures ambient temperature).
Parametrics
Name
Value
Customer Programmable RAM
N
Intruder Detection
Y
Operating Temperature
0° C to +70° C
PCH Temp Monitoring
N
Tach
3
Deep Sleep S5
N
Glue Logic
Y
8024 Keyboard Controller
Y
PCI Resets
4
RRCC Auto Fan
N
Legacy I/O
Y
GPIO
30
PWM
3
Package
128 QFP
SMBus Interface
Y
Security Key Register
N
AMD SB-TSI
N
Resume Reset
Y
System Controller
8-bit
Fan Control Engine
State Machine

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SCH5407-NW
1.810000
3.181818
128
MQFP
14x20x2.7
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
