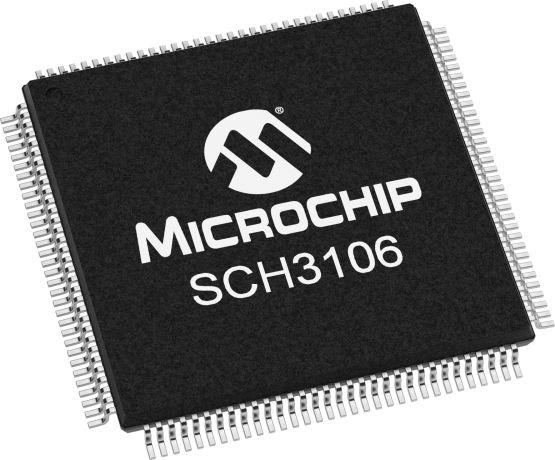

product primary image

SCH3106

Super I/O Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SCH3106 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface as well as Hardware Monitoring capabilities, enhanced Security features, Power Control logic and Motherboard Glue logic.

It incorporates complete legacy Super I/O functionality, including a floppy disk controller with SMSC's true CMOS 765B core and enhanced digital data separator. The true CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures and is software and register compatible with SMSC's proprietary 82077AA core.

The hardware monitoring capability includes temperature, voltage and fan speed monitoring. It can alert the system of out-of-limit conditions and automatically control the speeds of multiple fans and includes support for monitoring two external temperatures via thermal diode inputs and an internal sensor for measuring ambient temperature. The hardware monitoring capability also has programmable automatic FAN control.

Family parts
SCH3106-NU

Additional Features
  • 8042 Keyboard Controller
  • 128 VTQFP Package
  • Legacy I/O
  • 40 GPIO Pins
  • 32 byte Security Key Register
  • μController Fan Control Engine
  • PCH Temperature monitoring
  • Glue logic
  • 3 PWM Outputs
  • 3 fan tachometer inputs
  • IEEE 1284, EPP, and ECP Compatible Parallel Port
  • One IrDA 1.0 Infrared Port
  • NS16550 compatible UART serial ports
  • Four 8-pin serial ports
  • Two 4-pin serial ports
  • ACPI 1.0/2.0 compatible
  • Motherboard glue logic: various power management and system logic (generation of nRSMRST, a programmable clock output, reset generation, and watchdog timer)
Parametrics
Name
Value
Customer Programmable RAM
N
Operating Temperature
0° C to +70° C
PCH Temp Monitoring
Y
Tach
3
Deep Sleep S5
N
Glue Logic
Y
8024 Keyboard Controller
Y
PCI Resets
2
PECI Support
N
RRCC Auto Fan
N
Legacy I/O
Y
GPIO
40
PWM
3
Package
128 VTQFP
LED
2
SMBus Interface
N
Security Key Register
32 byte
AMD SB-TSI
N
Resume Reset
Y
System Controller
State Machine
Fan Control Engine
µController

Documents

Jump to:

Board Design Files

06/23/2015
386KB
