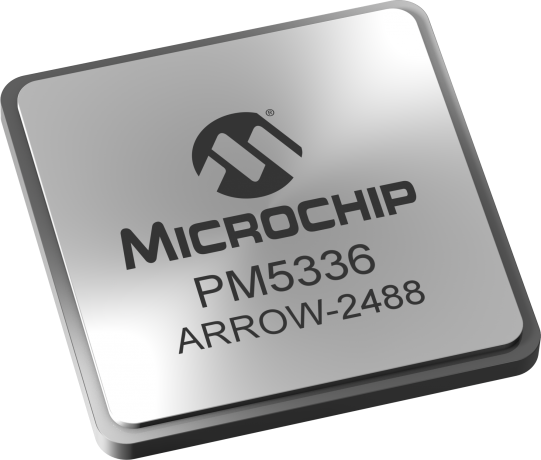

PM5336

ARROW 2488, Pb Free

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The PM5336 ARROW 2488 device is a feature-rich, high capacity single-chip solution that enables optimized compact MSPPs and highly integrated central cross-connects or high fan-in tributary cards for chassis-based MSPPs, packet MSPPs, and ROADMs. The ARROW 2488 enables low chip count and power-efficient equipment designs with unprecedented scalability and carrier-grade reliability. The ARROW 2488 consists of a SONET/SDH network interface and framer with integrated SERDES including full section, line, and high-order path processors, non-blocking memory-based high-order STS/AU and low-order VT/TU cross-connect, low-order VT/TU path processors, and a large number of expansion interfaces (both ESSI serial links and a Parallel TelecomBus interface). The SONET/SDH framer, high-order cross-connect, and low-order cross-connect support Message Assisted Protection Switching (MAPSTM), a mechanism that allows standards-based protection switching without software intervention.

Additional Features
    • Optimizes compact multi-port OC-48/STM-16 architectures, while allowing scalability to multi-port OC-192/STM-64 applications
    • Integrates field-proven CHESSTM intellectual property, reducing development cycles through reuse of CHESS software base
    • Exceeds the requirement for 50 msec protection switching for up to 5376 tributaries using a fully hardware-based APS algorithm (MAPS)
    • Two groups of four SONET/SDH interfaces, each supporting two modes of operation: Quad OC-12/3/STM-4/1 mode (four interfaces operating at 622.08 Mbit/s or 155.52 Mbit/s, selectable per port) Single OC-48/STM-16 mode (one interface operating at 2488.32 Mbit/s)
    • Quad OC-12/3/STM-4/1 mode (four interfaces operating at 622.08 Mbit/s or 155.52 Mbit/s, selectable per port)
    • Single OC-48/STM-16 mode (one interface operating at 2488.32 Mbit/s)
    • CML compatible serial interfaces to connect to optical transceivers
    • Framing, high order pointer processing, alarm processing and overhead processing on all received network streams
    • Dedicated pins to extract/reinsert B3/N1 path overhead bytes for Tandem Connection Monitoring
    • Per-framer connection ID message, allowing verification of high order path connectivity across single or multistage fabrics
    • BLSR and MSSPRing protection switching with alarm processing, K-byte express, automatic payload configuration, and other features
    • Insertion/extraction of transport overhead (TO) bytes from the line side interface
    • High capacity, memory-based, HO cross-connect capable of switching at STS-1/AU-3 granularity
    • Floating delay management
    • One 32-bit or four 8-bit 77.76 MHz TelecomBus interfaces connecting to parallel TelecomBus framers and mappers
    • Cross-connect implements HO MAPS algorithm to extract, filter and interpret line status code on a per STS-1 basis
    • TOH byte insertion and extraction (99 TOH bytes per port)
    • Support for a set of active and standby configuration memory pages, permitting new switch settings to be updated in one page while the TSE operates from the control settings of the other page
    • 2.5 Gbit/s to/from 622 Mbit/s interleaving/de-interleaving
    • Muxing scheme enables different port asset allocations for different applications
    • Configurable, multi-channel, payload processor that aligns and monitors performance of the SONET virtual tributaries (VTs) or the SDH tributary units (TUs)
    • Optionally monitors and terminates the path overhead of any legal mix of HO payloads in a SONET/SDH stream
    • Remaps the incoming transport frame, payload frame and tributary multi-frame alignment on the Receive side to the VT/TU Cross- Connect (WSE) frame and multi-frame alignments through low order pointer processing
    • Drop/Add path of TUPP supports multiple SDH payload conversions
    • Memory-based, LO cross-connect capable of switching at VT/TU granularity
    • Accepts and switches SONET VT and SDH TU streams. All SONET virtual tributary types (VT1.5, VT2, VT3, and VT6) All LO SDH tributary unit types (TU11, TU12, TU2, and TU3)
    • All SONET virtual tributary types (VT1.5, VT2, VT3, and VT6)
    • All LO SDH tributary unit types (TU11, TU12, TU2, and TU3)
    • Support for a set of active and standby configuration memory pages, permitting new switch settings to be updated in one page while the WSE operates from the control settings of the other page
    • Cross connect implements the Low Order MAPS algorithm to extract, filter, and interpret the line status code on a per VT/TU basis
    • ESSI links running at 2.488Gbit/s or 622Mbit/s (selectable per link)
    • Optional differential clock output in 622 Mbit/s mode for interconnect to FPGAs with no clock recovery
    • SONET/SDH B3/N1 path overhead interface for Tandem Connection Monitoring
    • SONET/SDH HO (STS/AU) transport overhead interface
    • SONET/SDH ring control/alarm port
    • Parallel TelecomBus interface with two functional modes: Single STS-48/STM-16 mode supporting a 77.76 MHz 32-bit TelecomBus interface Quad STS-12/STM-4 mode supporting four independent 77.76 MHz 8-bit TelecomBus interfaces
    • Single STS-48/STM-16 mode supporting a 77.76 MHz 32-bit TelecomBus interface
    • Quad STS-12/STM-4 mode supporting four independent 77.76 MHz 8-bit TelecomBus interfaces
    • Standard P1149.1 JTAG test port for boundary scan
    • 32-bit microprocessor interface for status monitoring and configuration
    • 35x35mm 1152-balls FCBGA
    • Multi-port OC-48/STM-16 single-chip solution for compact MSPPs
    • High fan-in, multi-rate SONET/SDH front-end for line cards for MSPPs, packet MSPPs, and ROADMs
    • Centralized high-order and/or low-order cross-connect and pointer optical platforms
    • One-armed low-order cross-connect and pointer processor for MSPPs

Documents

Jump to:

Data Sheets

Brochures


414KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PM5336B-FXI
0.000000
14.95833
1152
BBGA
35x35x3.32mm
SnPb
e0
PM5336B-FEI
10.83600
18.50000
1152
BBGA
35x35x3.32mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
