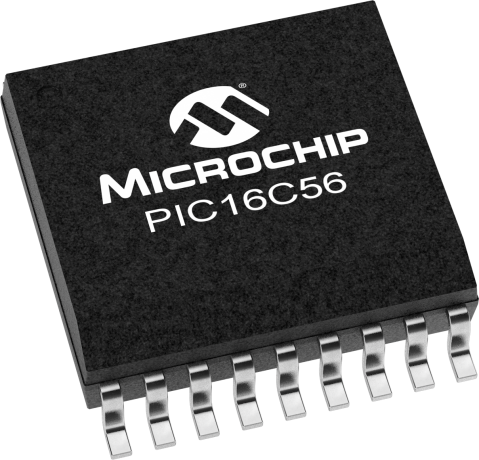

PIC16C56

Status: Not Recommended for new designs

Features:

  • A newer device is available. Please try PIC16F54.
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Please consider this device PIC16F54

Additional Features
A newer device is available. Please try PIC16F54.
Parametrics
Name
Value
Program Memory Type
OTP
Program Memory Size (KB)
1.5
CPU Speed (MIPS/DMIPS)
5
SRAM Bytes
25
Timers
1 x 8-bit
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
2.5 to 6.3
Pin Count
18
