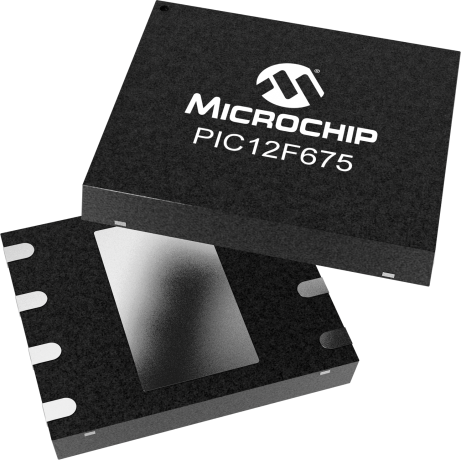

PIC12F675

Newer Device Available PIC16F18313

Status: In Production

Features:

  • 128 bytes of EEPROM data memory
  • Programmable pull-up resistors
  • 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-On Reset.
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

For product comparison, please consider: PIC16F18313

Additional Features
    • 128 bytes of EEPROM data memory
    • Programmable pull-up resistors
    • 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-On Reset.
Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
1.75
CPU Speed (MIPS/DMIPS)
5
SRAM Bytes
64
Data EEPROM/HEF (bytes)
128
Timers
1 x 8-bit, 1 x 16-bit
ADC Input
4 ch, 10-bit
Number of Comparators
1
Temperature Range (C)
-40 to 125
Operating Voltage Range (V)
2 to 5.5
Pin Count
8
