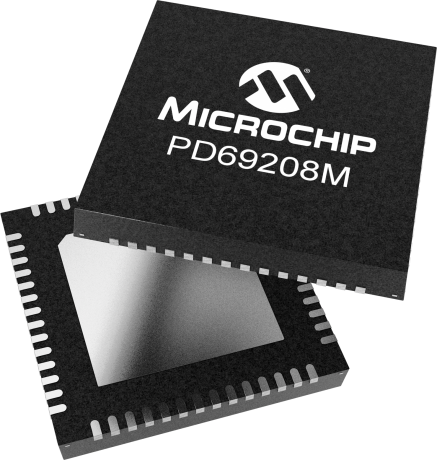

product primary image

PD69208M

IEEE 802.3at / bt Type 3, 8 ports, fully integrated PSE manager, industrial temp

Status: In Production

Features:

  • 8 independent PoE channels
  • Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
  • Drives 2-pair power ports or 4-pair ports (combining 2 PoE channels)
  • Single DC voltage input (32V to 57V) w/ built in 3.3V and 5V regulators
  • Input voltage out of range protection, voltage monitoring / protection
  • Wide ambient temperature range: -40°C to +85°C
  • On-chip over-temperature thermal protection and monitoring
  • Low power dissipation (0.1Ω sense resistor and 0.2Ω MOSFET Rdson per channel)
  • Power soft start mechanism, Internal power on reset
  • Can be cascaded up to 12 PoE devices (96 physical ports)
  • Detailed port status
  • Programmable threshold temperature alarm limit
  • Interrupt out pin for system and port events
  • Forced port power ON function
  • Port power limit setting, port matrix and priority
  • PD69208M: 56-pin, 8 mm x 8 mm QFN package
  • MSL3, RoHS compliant
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PoE manager IC integrates power, analog, and state-of-the-art logic into a single 56-pin, plastic QFN package. The device is used in Ethernet switches and midspans to allow network devices to share power and data over the same cable. The PD69208M device is an 8-port, mixed-signal, and high-voltage PoE driver. Together with the PD692x0 external MCU, it performs as a PSE system. The PoE controller, PD692x0, is a cost-effective, pre-programmed MCU designed to implement enhanced mode PoE. PD69208M supports supply voltages between 32V and 57V without additional power supply sources. A system that powers over four pairs can be implemented by combining two ports of PD69208M, enabling a high-power delivery to compatible PD devices. An on-going monitoring of system parameters for the host software is available via communication. Internal thermal protection is implemented in the chip. PD69208M is a low-power dissipation device that uses internal MOSFETs and internal 100 mΩ sense resistors. PD69208M is available in a 56 pin, 8 mm x 8 mm QFN package.

Additional Features
    • 8 independent PoE channels
    • Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
    • Drives 2-pair power ports or 4-pair ports (combining 2 PoE channels)
    • Single DC voltage input (32V to 57V) w/ built in 3.3V and 5V regulators
    • Input voltage out of range protection, voltage monitoring / protection
    • Wide ambient temperature range: -40°C to +85°C
    • On-chip over-temperature thermal protection and monitoring
    • Low power dissipation (0.1O sense resistor and 0.2O MOSFET Rdson per channel)
    • Power soft start mechanism, Internal power on reset
    • Can be cascaded up to 12 PoE devices (96 physical ports)
    • Detailed port status
    • Programmable threshold temperature alarm limit
    • Interrupt out pin for system and port events
    • Forced port power ON function
    • Port power limit setting, port matrix and priority
    • PD69208M: 56-pin, 8 mm x 8 mm QFN package
    • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PSE Manager
Standards Supported
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UPoE, PoH
Ports
8
2-Pair Power
35.7W
4-Pair Power
71.4W
Maximum Current
0.627A
PoE Class (0-8)
0-6
PoE Type (1-4)
1-3
FETs
Internal 0.2Ω
Sense Resistor
Internal 0.1Ω
Operating Temperature
–40 to 85
PoE Controller
PD69200 / PD69210 / Marvell ISSR
Temperature Grade
Industrial

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
4 x 2-pair + 4 x 4-Pair PSE EVB featuring PD69208M + PD69200 w/IEEE802.3bt FW
4 x 2-pair + 4 x 4-Pair PSE EVB featuring PD69208M + PD69200 w/IEEE802.3bt FW ( PD-IM-7604-4MH )

The PD-IM-7604-4MH evaluation board is developed based on PD69208M and PD69200 chipsets, and demonstrates the operation of four 4-pair ports and four 2-pair ports systems. The evaluation system provides designers with the required environment to evaluate the performance and implementation of PD69208M (eight ports) PoE manager and PD69200 PoE controller. The evaluation board enables PoE

...

Learn More
Add To Cart
8 x 2-pair PSE EVB featuring PD69208M + PD69200 loaded w/IEEE802.3at FW
8 x 2-pair PSE EVB featuring PD69208M + PD69200 loaded w/IEEE802.3at FW ( PD-IM-7608M )

The PD-IM-7608M evaluation board is developed based on PD69208M and PD69200 chipsets. PD-IM7608M demonstrates the operation of eight 2-pair ports systems; for 4-pair systems, refer to the PD-IM7604+4MH or PD-IM-7604+4T4H evaluation boards. Microchip's PD69208M Power over Ethernet (PoE) manager IC integrates power, analog, and state-of-the-art logic into a single 56-pin, plastic QFN package. The

...

Learn More
Add To Cart
8 x 2-pair PSE EVB, 2 PDs, featuring PD69208M + PD69200 loaded w/IEEE802.3at FW
8 x 2-pair PSE EVB, 2 PDs, featuring PD69208M + PD69200 loaded w/IEEE802.3at FW ( PD-IM-7608M-2 )

PD-IM-7608M-2 evaluation board is developed based on PD69208M PSE manager, PD69200 PSE Controller, PD70224 ideal diode bridge and PD70211 PD IC. It provides a dual input PD-PSE system, each PD supports up to 60 watt with additional support of AUX DC input. The AUX input gets priority in supplying the load and when it is connected to the application the PD inputs are acting as backup power in

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD69208MILQ-TR-LE
0.000000
0.460000
56
VQFN
8x8x1.0mm
NiPdAu
e4
PD69208MILQ-TR-LE-DELL4
0.000000
0.460000
56
VQFN
8x8x1.0mm
NiPdAu
e4
PD69208MILQ-TR-LE-DELL
0.000000
0.460000
56
VQFN
8x8x1.0mm
NiPdAu
e4
PD69208MILQ-TR-LE-DELL-N
0.000000
0.460000
56
VQFN
8x8x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
